Tokimec TG6000 TG8000 GYRO SERVICE & REPAIR: Keeping Your Compass in Optimal Condition
If you’re in the marine industry, you know how important it is to have a reliable compass onboard. A compass is an essential tool for navigating the open sea, and it’s crucial that it’s always in good working condition.
The Tokimec TG6000 TG8000 COMPASS is a popular choice for many boats and ships, thanks to its accuracy and durability. However, like any other equipment, it can experience wear and tear over time. That’s why it’s essential to have your GYRO Tokimec TG6000 TG8000 COMPASS serviced and repaired regularly.
GYRO COMPASS Tokimec TG6000 & TG8000 SYSTEM FLEXIBILITY
Wide range of control units enable unique configuration for new or retrofit installation. Interfaces are easily expanded to provide signals for all vessel applications. The distribution of power and heading signals from the control units allows for practical installation and easy retrofit.
Features
Maintenance free gyro
30k hour calculated MTTF (>70k observed)
Compact, Expanded, and Dual control versions
HSC compliant
NMEA/IEC, 24V Step, and Analog ROT outputs
No required annual servicing
Tokimec TG6000 TG8000 GYRO COMPASS MK2

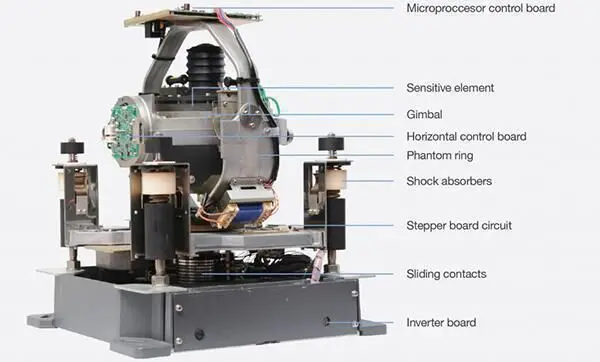

The Tokimec TG6000 TG8000 Gyro Compass MK2 is a reliable choice for standard and High Speed Craft, offering dual and expanded configuration options. The advanced technology ensures high accuracy and stability, even under harsh conditions, with a fully sealed sensitive element. Ideal for advanced DP systems in the offshore industry, the simple installation, and lack of required annual servicing makes it a top choice for 24/7 operators. IMO approved, the Tokimec gyro system is the ultimate navigation solution.
GYRO SERVICE – UAE | INDIA | SINGAPORE | BAHRAIN | AFRICA | CHINA
Seanav Marine specializes in Gyro Service, Repair, and Maintenance for major brands including Yokogawa, YTD Tech, Tokyo Keiki, Tokimec, Sperry Marine, Simrad, Raytheon, and Anschutz.
GENUINE & RECONDITIONED SPARES TOKYO KEIKI / TOKIMEC TG-8000 IN STOCK FOR IMMEDIATE DISPATCH
Direct Replacement & Maintenance Spares for Tokyo Keiki (Tokimec) TG-8000 Gyro Compass
Seanav Marine maintains an extensive global inventory of bench-tested reconditioned assemblies, original printed circuit boards (PWBs), and maintenance overhaul consumables for the Tokyo Keiki (Tokimec) TG-8000 Gyro Compass. All critical mechanical and electronic replacement parts are pre-tested to OEM standards to ensure seamless onboard restoration and minimum vessel downtime.
1. Key Spares & Manufacturer Part Numbers
Component Description
Tokyo Keiki / Tokimec Part Number
Recommended Replacement Interval
Sensitive Element (Gyrosphere)
10229409H
2–3 Years (recommended overhaul interval)
Step Motor Assembly (Follow-up)
10189046 (range 10169503–10169537)
Condition-based inspection / renewal
Slip Ring Brushes (Set of 2)
10239379 & 10239380
2 Years mandatory renewal
Drive Transmission Belt
10160030 (Pulley: 101600291)
Annual inspection / 2-year renewal
Rotor Bearing Assembly
102102361 / ES-Series Variant
Overhaul renewal / Rotor maintenance
2. Common PWB (Printed Wire / Circuit) Boards & Modules
Board Designation
Part / Model Range
Functional Description
MCC / SMCC PWB
10189501 – 10189503
Microprocessor Control Board; master gyro CPU
ZRCR / ENCC PWB
10189507 – 10189505
Encoder & Azimuth Tracking Control Circuit
SCC / MIFC / SIFC PWB
10189511 – 10189519 / 10189513
System Interface, Signal Conditioning & Serial Buffer
G-Power PWB (1) & (2)
10189517
Dual Gyro Power Supply Unit with automatic AC/DC switchover
G-Term PWB
10189515 – 10189548
Main Terminal Interface Board & repeater line fuse distribution
MCOIF / SCOIF / PCC / ICIF / EMCC PWBs
Range 10189523 to 10189541
Control unit expansion, operator panel & step distribution
System Main Power Fuses: F101 (6.3A) and F102 (20A) heavy-duty protection links.
G-Term Output Line Fuses: Range 1A to 15A for individual step/serial repeater circuits.
Gyro Damper Oil / Flotation Fluid: Half-filled maintenance check/top-up and clean replacement during 2-year service routines.
Need TG-8000 Spares, PCB Replacement or Onboard Attendance? Our certified gyro engineers are available 24/7 across UAE, India, Oman, Egypt, Singapore, and global ports.
