Marine Gyro Compass Service, Overhaul & Annual Maintenance: 24/7 Global Port Support
Executive Summary (BLUF): Marine gyrocompass service and annual maintenance are mandatory under IMO SOLAS Chapter V Regulation 19 to guarantee true geographic North heading reference for shipboard RADAR, ECDIS, AIS, and Autopilots. Seanav Marine provides certified 24/7 field service, gyrosphere exchange, supporting liquid renewal, dynamic calibration, and emergency voyage repairs for all 39 major marine gyrocompass models across Tokyo Keiki, Sperry Marine, Anschütz, Yokogawa, Simrad, Teledyne TSS, Alphatron, and GEM Elettronica, with rapid attendance across UAE ports (Jebel Ali, Fujairah, Sharjah) and major global hubs.
SOLAS Regulatory Framework & Maintenance Intervals
According to IMO SOLAS Chapter V, Regulation 19.2.5.1, all ships of 500 gross tonnage and upwards must be fitted with a gyrocompass (or other device) capable of determining heading and transmitting heading data to bridge repeaters, radar, and electronic plotting aids. Modern classification societies (ABS, DNV, Lloyd’s Register, Bureau Veritas, ClassNK) mandate periodic inspections, operational verification, and timely replacement of consumables to prevent hazardous at-sea heading loss.
| Maintenance Phase | Typical Interval | Action Items & Service Scope | Critical Spares Required |
|---|---|---|---|
| Annual Performance Check (APC) | Every 12 Months | Heading repeatability test, rotor current check, optical pick-off alignment, alarm simulation, slip-ring cleaning, backup battery switchover test. | Carbon brushes, drive belts, cooling fan filters, indicator lamps. |
| Fluid & Gasket Service | Every 12–24 Months | Draining depleted supporting fluid/electrolyte, ultrasonic descaling of electrode contact pins, replacing container sealing O-rings, refilling with lab-grade distilled water/fluid mixture. | OEM supporting liquid kit, deionized water, container gasket sets. |
| Gyrosphere Overhaul / Exchange | Every 3–4 Years (Mechanical) | Hot-swap replacement of floating gyrosphere or sensitive element, dynamic spin-down time verification (>15 min), rotor bearing overhaul, follow-up servo gain tuning. | Pre-balanced sensitive element/gyrosphere, step motor assembly, inverter PCB. |
| Solid-State FOG / RLG Diagnostics | Condition-Based (>100k h MTBF) | Zero fluid/mechanical wear. Electronic optical loop margin analysis, Kalman filter alignment check, Ethernet BAM alert validation, DC power ripple testing. | Optical sensor modules, DSP navigation boards, isolated power supply modules. |

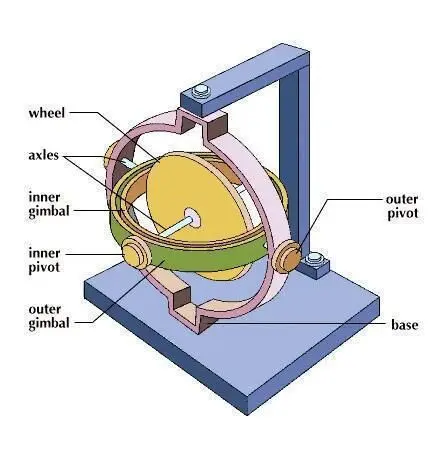

Gyrocompass Technologies: Comparative Engineering Matrix
Vessels operate across distinct physical gyro technologies, each dictating specific maintenance protocols, settle behaviors, and power requirements:
| Technology Type | Physical Principle | Typical Settle Time | Maintenance Requirement | Leading Example Models |
|---|---|---|---|---|

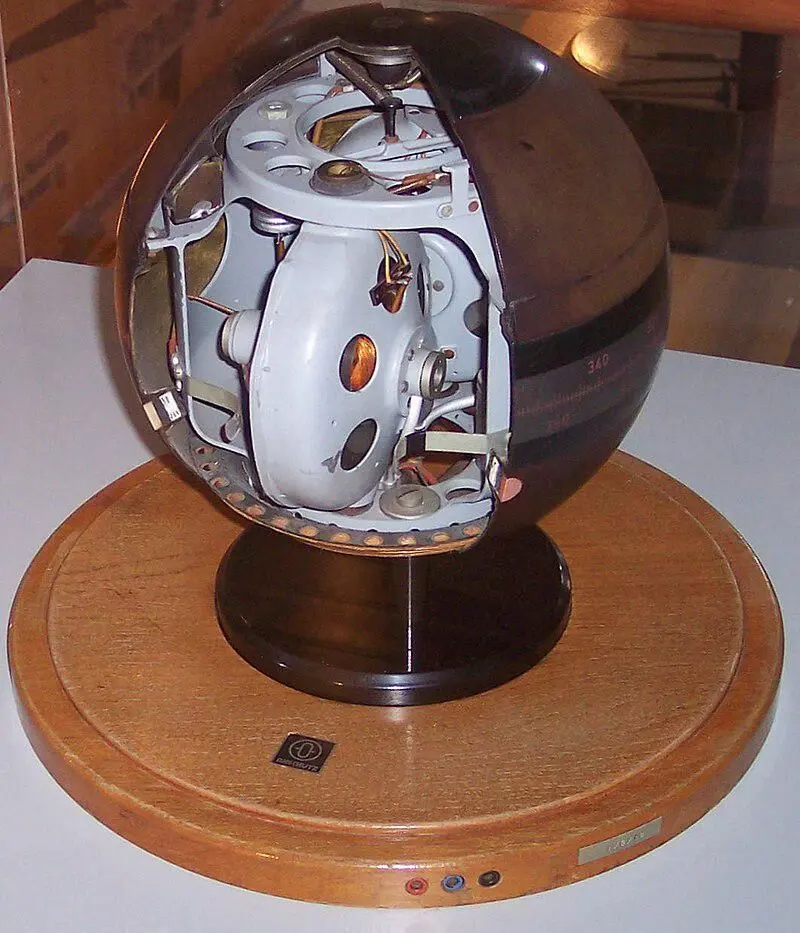

| Liquid-Suspended Gyrosphere | Spinning dual-rotors inside floating sphere in electrolyte/damping liquid with follow-up phantom ring. | 2 to 4 hours cold start (<1h with preset heading). | Regular fluid renewal (1–2 yrs), sphere overhaul (3–4 yrs), brush and belt renewal. | Tokyo Keiki TG-8000/8100, Sperry NAVIGAT X MK 1, Anschütz Standard 22, Yokogawa CMZ900. |
| Dynamically Tuned Gyro (DTG) | Dry, flexure-gimbaled spinning rotor operating at resonant dynamic tune frequency with zero fluid. | 30 to 45 minutes from cold start. | Zero liquid maintenance; periodic electronic calibration; MTBF >30,000 hours. | Teledyne TSS Meridian Standard, Meridian Surveyor, Alphatron AlphaMiniCourse. |
| Fiber Optic Gyroscope (FOG) | Optical Sagnac effect in counter-propagating laser beams inside coiled optical fiber. No moving parts. | < 5 minutes instant alignment. | Completely maintenance-free; no mechanical overhauls; MTBF >100,000 hours. | Sperry NAVIGAT 2200 / 3500, Anschütz Standard 30 MF / 100 MF, GEM Polaris FOG-100/200. |
| Ring Laser Gyroscope (RLG) | Closed optical cavity with helium-neon laser path measuring inertial angular rotation rates. | < 5 minutes dockside / stored azimuth. | Zero fluid; high shock resistance; tactical military naval navigation grade. | Sperry MK 39 AHRS, Sperry MK 49 SINS naval inertial navigation systems. |
Comprehensive Master Directory: All 39 Gyrocompass Models Supported
Seanav Marine stocks genuine replacement gyrospheres, supporting liquids, sensitive elements, inverter boards, and stepper assemblies for the complete global spectrum of commercial and naval marine gyrocompasses:
1. Tokyo Keiki (Tokimec)
- TG-8100 Gyro Compass (IMO Commercial Flagship)
- TG-8600 Gyro Compass (70 Knots High-Speed Craft)
- TG-8000 Gyro Compass (Standard IMO Merchant)
- TG-8500 Gyro Compass (HSC High-Speed Craft)
- TG-6000 Gyro Compass (Classic Merchant Fleet)
- TG-5000 Gyro Compass (Classic Workhorse)
- ES-160 Gyro Compass (Modern Compact Commercial)
- ES-140 Gyro Compass (Workboat & Fishing)
- ES-110 Gyro Compass (Compact Binnacle)
2. Sperry Marine (Northrop Grumman)
- NAVIGAT 2200 Gyro Compass (Solid-State FOG)
- NAVIGAT 3500 Gyro Compass (FOG Heading Sensor)
- NAVIGAT 2500 Gyro Compass (Commercial FOG)
- NAVIGAT 200 Gyro Compass (Digital Master Gyro)
- NAVIGAT 100 Gyro Compass (Commercial Navigation)
- NAVIGAT X MK 1 Gyro Compass (Type 4914 Binnacle)
- NAVIGAT X MK 2 Gyro Compass (Type 4911 Compact)
- MK 37 Gyro Compass (Classic Naval & Deep-Sea)
- MK 39 Gyro Compass / AHRS (RLG Survey Grade)
- MK 49 Gyro Compass / SINS (Naval Inertial System)
- MK 27 Gyro Compass (Classic Rugged Master)
- SR 120 Gyro Compass (Compact Workboat)
3. Raytheon Anschütz
- Standard 22 NX Gyro Compass (Next-Gen Flagship)
- Standard 22 Gyro Compass (Global Commercial Benchmark)
- Standard 30 MF Gyro Compass (Maintenance-Free FOG)
- Standard 100 MF Gyro Compass (Dual FOG & AHRS)
- Standard 20 Gyro Compass (Classic Electromechanical)
4. YDK Technologies (Yokogawa)
- CMZ900 Gyro Compass (Flagship Commercial IMO)
- CMZ700 Gyro Compass (Deep-Sea Merchant Master)
- CMZ500 Gyro Compass (Compact Vessel Master)
- CMZ300 Gyro Compass (Coaster & Tug Series)
5. Simrad (Kongsberg / Navico)
- Simrad GC80 Gyro Compass (DP & Standard IMO)
- Simrad GC85 Gyro Compass (High-Speed Craft HSC)
- Simrad GC50 Gyro Compass (Commercial Workboat)
- GC80 Compact System MK2 (Integrated Single Unit)
- GC80 Expanded System MK2 (Dual / Multi-Repeater)
6. Teledyne TSS / S.G. Brown
- Meridian Standard Gyro Compass (Dry DTG Technology)
- Meridian Surveyor Gyro Compass (Hydrographic Grade)
7. Alphatron Marine (JRC)
- AlphaMiniCourse Gyro Compass (Compact Dry Sensor)
- AlphaMidiCourse Mk2 Gyro Compass (Wheelmark MED)
8. GEM Elettronica
- Polaris FOG-100 Gyro Compass (Solid-State Naval)
- Polaris FOG-200 Tactical AHRS (Military Inertial Grade)

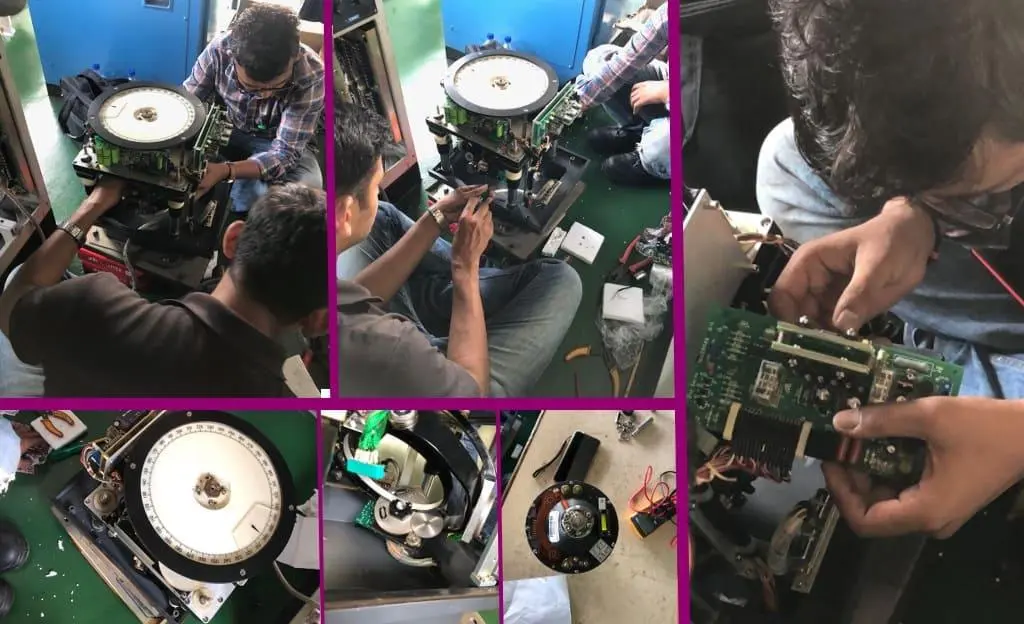

Standard Operating Procedure: Seanav Certified Gyro Overhaul
Seanav Marine service engineers follow a strict 6-stage protocol during every onboard gyrocompass overhaul or dry-dock attendance:
- Pre-Service Inspection & Baseline Diagnostics: Interrogating error logs, recording baseline heading drift versus GPS COG/heading, measuring spin-up voltage, and checking inverter phase balance.
- Container Evacuation & Chamber Cleaning: Carefully draining depleted electrolyte/supporting liquid into hazardous waste containment; disassembling container bowl; ultrasonic cleaning of lower and upper centering contact pins; replacing container silicone seals and O-rings.
- Sensitive Element Overhaul / Exchange: Installing a certified, dynamically balanced gyrosphere or sensitive element (e.g. Tokyo Keiki 10229409H, Sperry 074829, Anschütz 110-233). Performing spin-down time benchmarking (>15 minutes free spin) to verify rotor bearing perfection.
- Electrolyte Re-filling & Centering Adjustment: Filling chamber with factory-certified supporting liquid mixed with medical-grade deionized water at ambient temperature. Adjusting vertical flotation height and checking contact pin clearance.
- Follow-Up Servo Tuning & Optical Calibration: Aligning optical pick-off bridge null, adjusting servo amplifier loop damping to eliminate hunting or lag, inspecting follow-up drive belt tension, and cleaning slip-ring collector tracks.
- Dynamic Testing & Bridge Integration: Performing complete settle sequence (<3 hours), checking speed and latitude error compensation potentiometer/GPS feeds, verifying multi-channel RS-422 NMEA 0183 ($HEHDT at 40 Hz) sentences, and testing 24V DC emergency battery switchover.
24/7 Global Port Attendance & Rapid Mobilization Hubs
Seanav Marine operates certified flying squads and port workshops equipped with mobile dynamic balancing rigs, calibrated rate tables, and comprehensive spare parts inventories:
- United Arab Emirates (All 7 Emirates): Jebel Ali Port, Port Rashid, Dubai Maritime City, Fujairah Offshore Anchorage (riding squads via supply boat), Port Khalid, Hamriyah Port, Mina Saqr, Khalifa Port, Ruwais Tanker Terminal.
- Suez Canal & Red Sea Corridor: Port Said, Suez Anchorage, Alexandria, Damietta, and transit attendance during canal convoys.
- International Maritime Hubs: Singapore, Shanghai, Ningbo, Busan, Rotterdam, Houston, and major bunkering anchorages.
Frequently Asked Questions (FAQ)
How often must a marine gyrocompass be overhauled according to SOLAS?
While SOLAS Chapter V Regulation 19 mandates that a vessel maintain a properly functioning heading transmission device, manufacturers (Tokyo Keiki, Sperry Marine, Anschütz) stipulate that supporting fluids must be serviced every 12 to 24 months, and mechanical sensitive elements or gyrospheres must be overhauled or exchanged every 3 to 4 years to prevent bearing failure and catastrophic loss of heading at sea.
What is the primary difference between a gyrosphere and a solid-state FOG?
A mechanical gyrosphere relies on high-speed spinning electrical rotors suspended in damping liquid, requiring periodic fluid replacement and bearing overhauls. In contrast, a Fiber Optic Gyroscope (FOG) uses no moving parts or liquids; it measures the optical Sagnac effect of counter-propagating laser beams inside fiber coils, providing instant settle times (<5 minutes) and maintenance-free operation with MTBF exceeding 100,000 hours.
What causes gyrocompass “hunting” or oscillation?
Gyro hunting (continuous oscillation around the true heading) is typically caused by: 1) excessive gain or degraded damping capacitors on the follow-up servo amplifier PCB; 2) worn follow-up gear teeth or loose drive belts; 3) contaminated container supporting liquid causing fluctuating flotation impedance; or 4) worn slip-ring brushes creating intermittent feedback signals.
Can Seanav Marine attend our vessel during Fujairah offshore bunkering?
Yes. Seanav Marine maintains 24/7 technical riding squads stationed in Fujairah. Our engineers can board vessels at offshore anchorages A, B, or C via launch boat to perform urgent gyrocompass repairs, fluid top-ups, sensitive element exchanges, or annual performance checks without disrupting cargo or bunkering operations.
24/7 Gyrocompass Overhaul & Calibration at Berth or Anchorage
Specialized gyro engineers attending Tokyo Keiki (TG-6000/TG-8000), Sperry Marine (Navigat), Anschütz (Standard 22), Simrad, and Yokogawa with genuine spare spheres and supporting liquids in stock.
