Marine Magnetic Compass Maintenance, Binnacle Adjustment & Deviation Certification Guide
SOLAS CHAPTER V COMPLIANT
IACS CLASS SURVEY APPROVED
GLOBAL 24/7 PORT ATTENDANCE
The Marine Magnetic Compass is the ultimate independent heading reference appliance on commercial vessels, operating completely free of electrical power under SOLAS Chapter V Regulation 19.2.1.1. To prevent catastrophic grounding and collision caused by vessel magnetic deviation, compasses must be properly adjusted using binnacle magnets, Flinders bars, and soft iron quadrantal spheres. Seanav Marine provides certified compass adjusting, deviation table generation, bubble elimination, optical periscope refurbishment, and compass certificate renewals across global ports.
Maritime Entity Graph & Operational Context
1. Operational Architecture & System Principles
The Magnetic Compass Systems is an indispensable primary navigation and bridge maneuvering sensor fitted aboard commercial vessels under international maritime safety regulations. Operating under stringent maritime standards, the system delivers real-time, high-precision navigational telemetry to the navigation bridge, Integrated Navigation Systems (INS), Electronic Chart Display and Information Systems (ECDIS), and Voyage Data Recorders (VDR).
Compliance with SOLAS Chapter V Reg. 19.2.1.1, IMO Res A.382(X), ISO 25862, STCW Convention requires continuous operational reliability, fail-safe sensor redundancy, and strict annual inspection protocols. Modern bridge systems integrate dual isolated power conditioning units, robust physical shock mounting, and standardized IEC 61162-1/2 (NMEA 0183) and IEC 61162-450 Ethernet data channels to ensure uncompromised collision avoidance and safe passage execution.
2. Technical Specifications & Performance Standards
| System Parameter | Verified Technical Specification | Compliance & Verification Rule |
|---|---|---|
| Statutory Mandate | SOLAS Chapter V Regulation 19.2.1.1 & IMO Resolution A.382(X) | Mandatory Independent Heading Sensor |
| Performance Standard | ISO 25862 (Marine Magnetic Compasses, Binnacles and Azimuth Reading Devices) | Class Approved Type A Standard |
| Maximum Allowable Deviation | Residual deviation after adjustment must not exceed ±3° on any heading | IMO Resolution A.382(X) Limit |
| Compass Bowl Fluid | Pure ethyl alcohol and distilled water mixture (Specific gravity 0.94 to 0.95) | Sub-Zero Freeze Protection to -30°C |

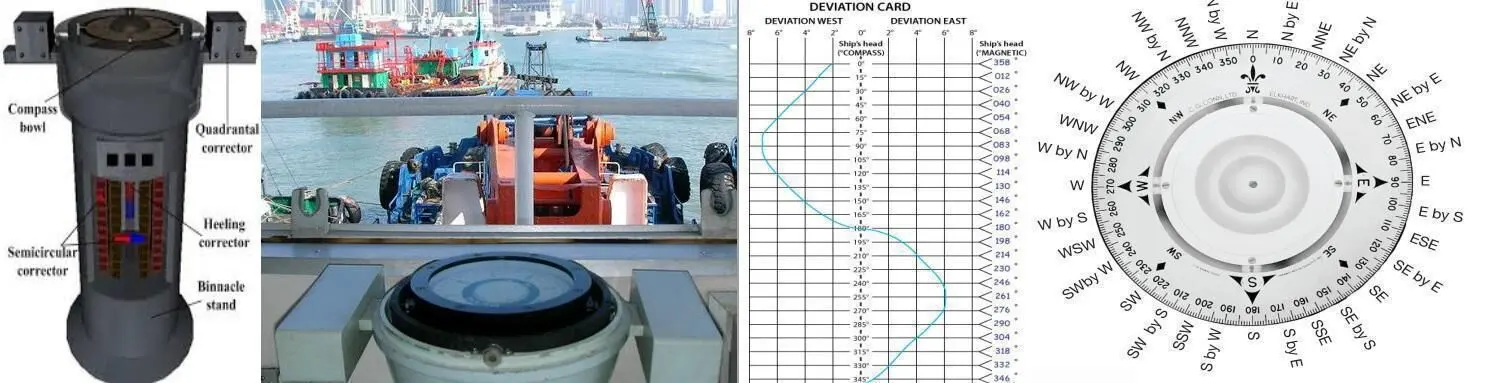

| Correction Equipment | Fore-and-aft (B) magnets, Athwartships (C) magnets, Heeling error (D) magnets, Flinders bar, Quadrantal spheres | Binnacle Compensation System |
| Optical Periscope / TMC | Optical reflection tube or Transmitting Magnetic Compass (TMC) NMEA pickup coil | Bridge Steering Stand Readout |
| Approved Manufacturers | Sperry C.Plath Jupiter, Lilley & Gillie, Cassens & Plath, Saura, Tokyo Keiki | Wheelmark MED & Class Certified |
3. Common Failure Modes, Root Cause Analysis & Corrective Actions
During deep-sea navigation and port arrivals, navigation equipment is exposed to extreme mechanical vibration, thermal expansion, marine growth, and power transients. The matrix below outlines established engineering diagnostic protocols verified by Seanav Marine service engineers:
| Observed Symptom | Probable Root Cause | Component / Subassembly | Class Defect Standard | Verified Corrective Action |
|---|---|---|---|---|
| Air Bubble Inside Compass Bowl | Fluid leakage through dried perimeter rubber gasket or extreme thermal contraction | Bowl Gasket / Expansion Diaphragm | ISO 25862 | Invert bowl; inspect corrugated copper expansion diaphragm; top up with pure alcohol/distilled water solution; seal fill plug. |
| Compass Card Sluggish / Sticking on Heading | Worn iridium-tipped pivot point or cracked synthetic sapphire jewel bearing | Pivot Point / Jewel Bearing Cup | IMO Res A.382(X) | Disassemble compass card assembly; inspect pivot under microscope; renew sapphire jewel cup; verify free card oscillation period. |
| Excessive Magnetic Deviation (>5° on Certain Headings) | Vessel structural magnetic changes from steel cargo, shipyard welding, or lightning strike | Binnacle Corrector Magnets | SOLAS V/19 | Perform compass adjustment swinging ship through 360°; adjust athwartships and fore-and-aft magnets; update formal deviation curve table. |
| Heeling Error Uncorrected in Heavy Rolling | Heeling error bucket magnet positioned too low or incorrect magnetic polarity | Vertical Heeling Bucket Assembly | ISO 25862 | Measure vertical force with dip needle; adjust height of vertical bucket magnets until vertical component is neutralized. |
| Transmitting Magnetic Compass (TMC) NMEA Output Fails | Defective fluxgate pickup sensor mounted beneath bowl or damaged converter PCB | TMC Pickup Sensor / Converter Unit | IEC 61162-1 | Inspect fluxgate coil excitation voltage; verify NMEA $HCHDG sentence stream to radar/autopilot; replace damaged sensor pickup. |
4. 12-Step Marine Technical Service & Annual Survey Workflow
All onboard navigation equipment maintenance, calibration procedures, and surveys conducted by Seanav Marine adhere to an ISO-aligned 12-step technical workflow designed to guarantee full IACS class endorsement and zero Port State Control (PSC) downtime:
Analyze vessel equipment layout, OEM manual dossiers, previous class survey certificates, and reported bridge error logs.
Liaise with Master and Duty Officer; establish safe work isolation protocols on bridge consoles, mastheads, or underwater sea-chests.
Inspect physical housing, anti-vibration rubber mounts, marine silicone gaskets, desiccant cartridges, and watertight cable glands.
Measure AC mains voltages, DC charging float voltages, verify power ripple limits, and test automatic transition to emergency battery feeds.
Test electrical winding resistances, coaxial cable attenuation, transducer insulation resistance (>10 Megohms), and ground bonding (<0.05 ohms).
Execute zero-speed, zero-heading, or optical level calibrations; adjust mechanical offsets to ensure true sensor alignment with ship centerline.
Analyze serial NMEA 0183 / NMEA 2000 data streams with digital oscilloscope and protocol analyzer; verify parity, sentence formats, and checksums.
Verify bidirectional data communication between sensor and primary bridge consumers: ECDIS, ARPA Radars, Autopilot, VDR, and Conning Display.
Simulate sensor power failure, data lost, and boundary exceedance; verify audible alarms and BAM category C/W/A notifications.
Inspect system diagnostics logs, clear transient fault memories, and verify system software complies with latest IMO/IHO performance editions.
Observe equipment performance during ship maneuvering or harbor transit; confirm smooth tracking, zero hunting, and stable display damping.
Issue comprehensive Survey Calibration Report; endorse vessel deck log; restock onboard emergency spare parts kit (fuses, lamps, gaskets).
5. Regulatory Compliance & IACS Classification Standards
Commercial maritime navigation installations operate under rigorous international conventions enforced by the International Maritime Organization (IMO) and classification societies:
- SOLAS Chapter V (Safety of Navigation): Governs mandatory carriage of navigational equipment, maintenance of records, sensor redundancy, and steering control systems.
- IMO Resolution A.694(17) & IEC 60945: Sets environmental, vibration, electromagnetic compatibility (EMC), and ingress protection standards for marine electronic navigation equipment.
- IACS Annual Safety Navigation Surveys: Conducted in collaboration with IACS member societies (DNV, ABS, Lloyd’s Register, ClassNK, Bureau Veritas, RINA, IRS) to verify calibration records and prevent Port State Control (PSC) detentions.
6. Worldwide Port, Anchorage & OPL Attendance
Seanav Marine maintains rapid-response marine navigation technical squads positioned near major international shipping hubs, attending alongside container terminals, drydocks, lay-up berths, and offshore anchorages:
Dubai Maritime City, Port Rashid, Jebel Ali, Port of Fujairah (Offshore Anchorage & Bunkering), Sharjah, Khor Fakkan, Abu Dhabi, Ras Laffan.
Port of Singapore (PSA), Jurong Port, Eastern/Western Anchorages, OPL Johor, Tanjung Pelepas, Port Klang.
Port of Rotterdam, Antwerp, Hamburg, Bremerhaven, Dunkirk, Amsterdam, Gibraltar Strait anchorage.
Houston Ship Channel, New Orleans, Galveston, Miami, Panama Canal (Balboa / Cristobal), Santos.
JNPA (Nhava Sheva), Mumbai Port, Mundra, Kandla, Cochin, Chennai, Visakhapatnam, Colombo Anchorage.
Port Said, Suez Anchorage, Great Bitter Lake, Alexandria, Damietta, Red Sea ports.
7. Frequently Asked Questions (AEO & Technical Reference)
Why is a magnetic compass still mandatory when vessels have gyrocompasses?
A magnetic compass is completely independent of electrical power, mechanical rotors, and satellite signals. If a total blackout or cyber attack disables the ship’s generators, UPS, and bridge electronics, the magnetic compass remains the sole reliable heading reference for steering the ship.
When is a professional magnetic compass adjustment required by law?
Adjustment is required: (1) upon installation, (2) when physical deviation exceeds ±5°, (3) after major structural repairs or dry docking involving welding near the bridge, (4) following a lightning strike, (5) after carrying highly magnetic cargoes, or (6) every 2 years under flag administration rules.
What causes an air bubble inside the compass bowl, and why is it dangerous?
Bubbles occur when temperature variations contract the fluid or when seal gaskets degrade. An air bubble creates surface tension drag against the compass card, causing sluggish movement and heading errors during vessel turns.
What is the function of the Flinders bar on the binnacle?
The Flinders bar is a vertical soft iron cylinder fitted on the forward or after side of the binnacle. It neutralizes asymmetrical vertical soft iron magnetism induced in the vessel’s hull and funnel by the Earth’s vertical magnetic field as the vessel changes magnetic latitude.
Can Seanav Marine provide licensed magnetic compass adjusters in UAE?
Yes, Seanav Marine provides certified, flag-approved compass adjusters for swinging ships at Dubai, Jebel Ali, Fujairah, and Sharjah anchorages, issuing official Deviation Cards recognized by all IACS class societies.
