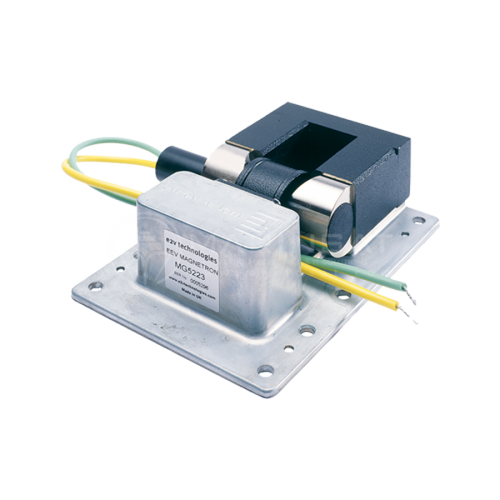

RADAR Magnetron MG5223F

The RADAR Magnetron MG5223F is a key part of Marine Navigation Equipment. Also called a marine radar tube or MG5223F magnetron, it helps ships move safely, even when visibility is poor. This magnetron sends out radar waves that bounce off nearby ships or objects. Then, the radar system shows this on a screen.It is very useful in ship radar systems, which are also known as boat radar technology or vessel radar units. These systems are important for safe travel at sea. In addition, they help track weather and avoid accidents. If you work in marine fields, this guide will help you understand why this magnetron is so important.

---

What is RADAR Magnetron MG5223F?

The MG5223F magnetron creates high-power radar signals. It is used in marine radar transmitters. These signals bounce off objects like boats or rocks. After that, the system shows where those objects are.

In short, this helps ships move safely.

Why It’s Important for Marine Use

The marine radar tube works well in tough sea conditions. It is found in many Marine Navigation Equipment. For example, large ships, fishing boats, and coast guard vessels use it.

This makes it very important for people who work at sea.

Used in Ship Radar Systems

The MG5223F fits easily into most ship radar systems. It works with other radar parts to show a clear map of the sea. In fact, both small boats and large ships use this type of radar.

Maintenance Tips

The MG5223F magnetron should be checked often. This keeps it working longer. If the radar shows weak signals, the magnetron may need a replacement.

---

10 Simple FAQs (Improved Readability)

Where can I buy it?
From trusted stores like Digi-Key or Mouser.

What does MG5223F magnetron do?
It sends radar waves to find nearby objects at sea.

Can I use it in any radar system?
Check your radar model. Many systems support it, but not all.

How long does it last?
Around 1,000–2,000 hours, based on use and care.

Can I install it myself?
No. A trained technician should install it.

What happens if it stops working?
Radar images will be weak or disappear.

Does it help detect storms?
Yes, it helps show storm shapes on radar screens.

Is it used in big ships only?
No. Small boats and big ships both use it.

Is it waterproof?
It is made for marine use, but should still be kept dry inside the system.

Can I test if it’s still working?
Yes, by checking radar range and signal clarity.
