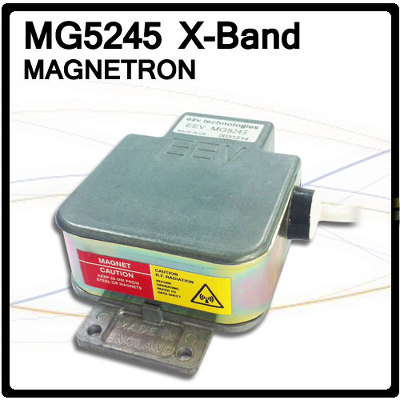

RADAR Magnetron MG5245

Posted on by SEANAV MARINE
05
May

Introduction

The RADAR Magnetron MG5245 is a key part of many Marine radar system. It is also known as the MG5245 radar tube or marine magnetron device. This tool helps ships detect objects in the water using microwave magnetron technology. This includes devices like high-frequency magnetrons and radar transmitter tubes. These are important for safe travel at sea. When you understand how this magnetron works, you can better use or maintain marine radar systems. It also helps you make safer choices when navigating ships.

What is the RADAR Magnetron MG5245?

The RADAR Magnetron MG5245 is a small device that creates microwave signals. These signals are sent out by radar systems on ships. When the waves hit an object and bounce back, the radar shows the object on the screen. This allows the crew to “see” even in fog or darkness. The MG5245 is strong and reliable, which makes it perfect for use at sea.

Why is the MG5245 Useful in Marine Radar Systems?

This magnetron works inside ship radar or navigation radar devices. These tools are used to find other ships, islands, or large rocks in the water. In other words, they help avoid crashes. The marine magnetron device sends out clear and steady signals, so it works even in bad weather. Therefore, it is trusted by many shipping companies and boat operators.

How Microwave Magnetron Technology Works

The MG5245 uses microwave magnetron technology. This means it produces very fast and strong signals. These signals travel through the air and bounce back when they hit something. Then the radar system calculates how far away the object is. Thanks to this high-frequency magnetron, ships can move safely through busy or dangerous waters.

Key Benefits of MG5245 Radar Tube

  • Strong signal strength for long-distance detection
  • Lasts long even in salty air or rough sea conditions
  • Fits easily into small radar units
  • Helps detect objects clearly and quickly

10 Frequently Asked Questions (FAQs)

1. What is the RADAR Magnetron MG5245 used for?
It helps radar systems on ships detect nearby objects.

2. What kind of radar systems use the MG5245?
It is used in marine radar, especially for small to medium vessels.

3. What is the output frequency of this magnetron?
It operates in the X-band around 9.4 GHz.

4. How long does this radar tube usually last?
It lasts between 1,000 to 3,000 hours, depending on use.

5. How do I know it needs to be replaced?
You may see weak radar signals or missing targets on the screen.

6. Is it easy to install the MG5245?
It is best to let a trained technician do the installation.

7. Does it work in all weather?
Yes, it performs well in fog, rain, and at night.

8. Is MG5245 safe to use?
Yes, it is built with safety in mind, but high voltage is involved.

9. Can I use other magnetrons instead?
Only if they match your radar’s needs and are approved by the maker.

10. What is the most important benefit of this magnetron?
It keeps ships safe by giving accurate radar images.
