em-trak A200 Commercial Wheelmark MED Class A AIS Transceiver

The Em-Track A200 Class A AIS is a marine Automatic Identification System designed for a wide range of commercial and recreational vessels. Certified for SOLAS-regulated operations, the A200 supports vessel types including Commercial Fishing vessels over 15 metres, Commercial Workboats, Inland Waterway vessels, Superyachts, and SOLAS-classified ships. The system integrates via the A200 Pilot Plug to 18-Way Data Cable Assembly, providing a standardized onboard connection interface. An English-language user manual is available for download, offering comprehensive operational guidance for installation and use. The Em-Track A200 delivers reliable Class A AIS performance for enhanced maritime safety, vessel tracking, and navigation awareness. [Request a Quote] for pricing and availability.

Contact Sales

SKU: SEANAV-AIS-A200 Category: AIS Brand: Em-Trak

Transportation, returns and warranty

Products are normally supplied ex-stock UAE, subject to confirmation of the individual item. Delivery within Dubai and Sharjah is approximately Contact Sales for items weighing 5–10 kg and Contact Sales for items above 10 kg. Confirm the charge for items below 5 kg, the item weight, delivery address and final booking before purchase. Other destinations and DHL, FedEx, air-cargo or sea-cargo shipments are charged at actual cost after booking and confirmation.

Correctly supplied items are not returnable or exchangeable. Exchanges may be considered only for incorrect supply; confirm any exchange with service@seanav.org. Any warranty on brand-new equipment comes from the OEM under its terms. SEANAV MARINE provides no warranty on services.

Read the returns, warranty and transportation policy · Contact service@seanav.org

Description

Description

Equipment Overview & Key Specifications

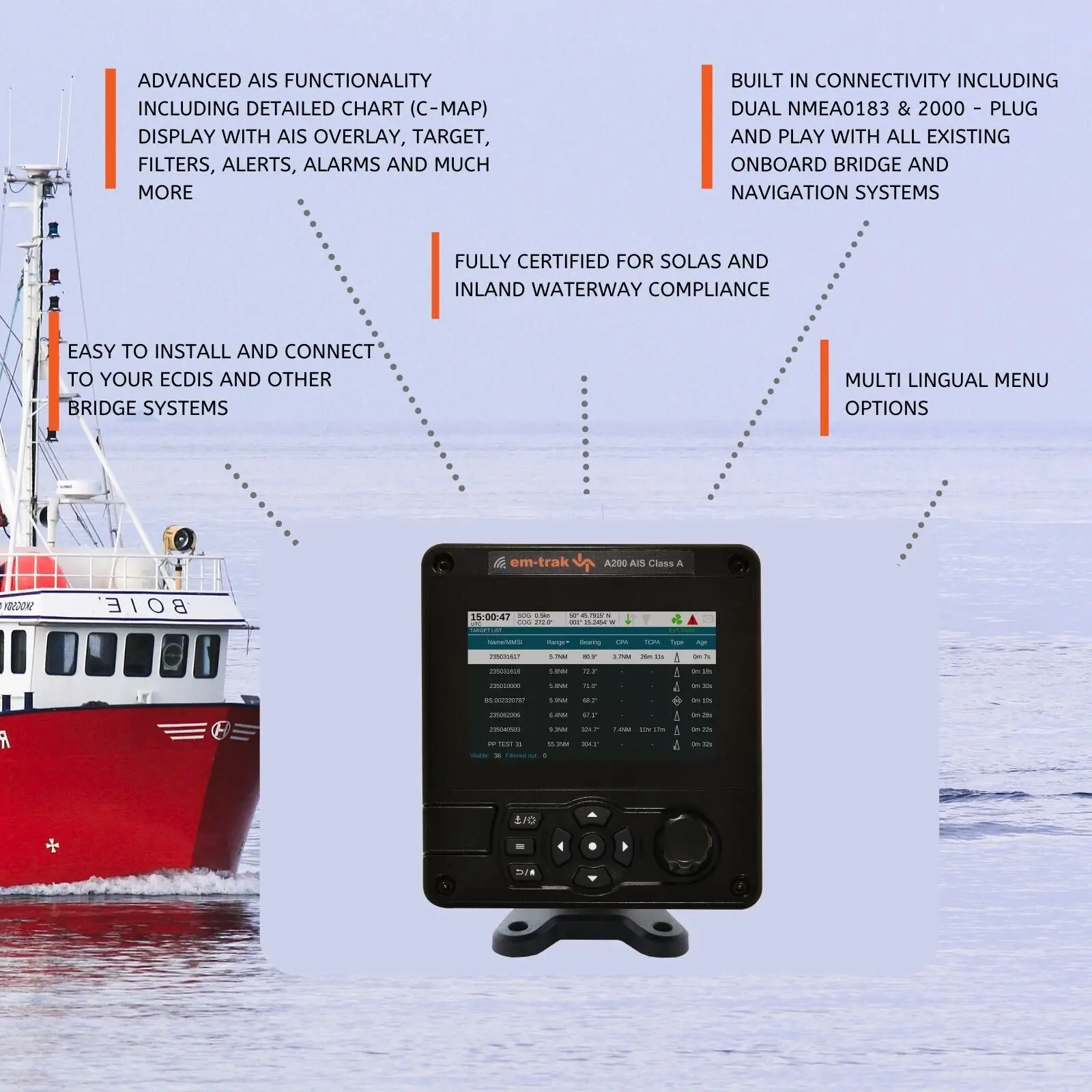

The em-trak A200 is an internationally certified commercial Class A AIS transceiver fully approved under IMO MSC.74(69), ITU-R M.1371, and European Wheelmark (MED) standards for mandatory SOLAS carriage. Featuring an integrated 5-inch daylight-viewable color display, rotary dial controls, front-panel pilot plug, and robust IEC 61162-1/2 high-speed interfaces, the A200 delivers commercial reliability for deep-sea merchant vessels, tugs, and passenger ships.

Technical Specifications

AIS Classification	Wheelmark MED & IMO Class A Type Approved
RF Output Power	12.5 Watt / 1.0 Watt switchable commercial transmit power
Display Screen	5.0-inch high-resolution sunlight-readable full-color display
Pilot Port	Integrated front-panel standard maritime pilot plug connector
Interfaces	3x bi-directional IEC 61162-1/2 high-speed ports, ECDIS, Radar, VDR, BAM ready
Environmental	IPx6 & IPx7 waterproof front chassis / IP54 rear bridge console seal
Operating Voltage	12V / 24V DC nominal (9.6V to 31.2V DC range)
Testing Standard	Pre-delivery bench inspection (PDI) certified at Dubai Maritime City

Frequently Asked Questions (AEO / Technical Reference)

Is the em-trak A200 approved for mandatory SOLAS carriage?

Yes, the A200 holds full Wheelmark MED, USCG, and IMO approvals for mandatory carriage on all commercial vessels over 300 GT.

Does the A200 require an external junction box?

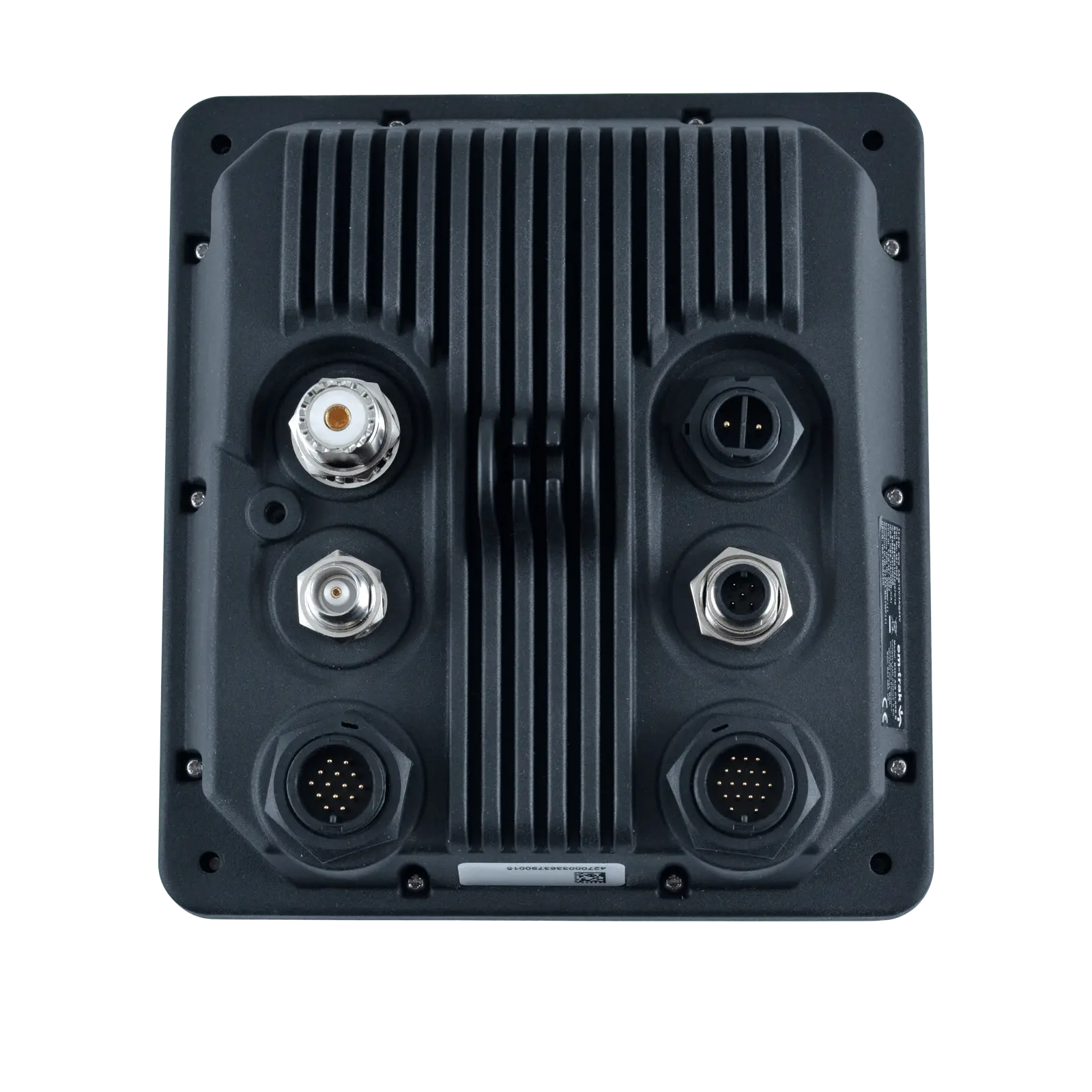

The A200 can be wired directly via its breakout cables or connected into an optional bridge junction box for neat commercial cable termination.

Can marine pilots connect directly to the front of the unit?

Yes, the front panel incorporates a standardized 5-pin maritime pilot plug for direct connection to portable pilot units (PPUs).

Can the A200 display AIS target lists and graphical radar views?

Yes, the high-resolution color screen displays target lists sorted by range, CPA, or name, as well as a graphical north-up / head-up radar view.

Where can I purchase and commission the A200 in the UAE?

Seanav Marine Technical Services supplies, inspects, and commissions the A200 directly from Dubai Maritime City with 24/7 port boarding attendance.

Certified Marine Survey & Installation Credentials

Authorized Distributor & Service Partner: Genuine em-trak Marine Electronics equipment with manufacturer warranty.
Pre-Delivery Inspection (PDI): Every unit undergoes strict bench calibration, RF transmission integrity validation, and power surge testing at our Dubai Maritime City (DMC) electronics laboratory before dispatch.
Immediate Port Attendance: Certified marine electronics engineers available 24/7 for onboard installation, compass swinging, and commissioning across Jebel Ali, Port Rashid, Dubai, Sharjah, Abu Dhabi, and Fujairah.
Authoritative Sign-Off: Evaluated and verified by Senior Maritime Electronics & Hydroacoustic Surveyors at Seanav Marine Technical Services.

Manufacturer documentation and compatibility

em-trak Marine Electronics official product documentation

Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
