Description

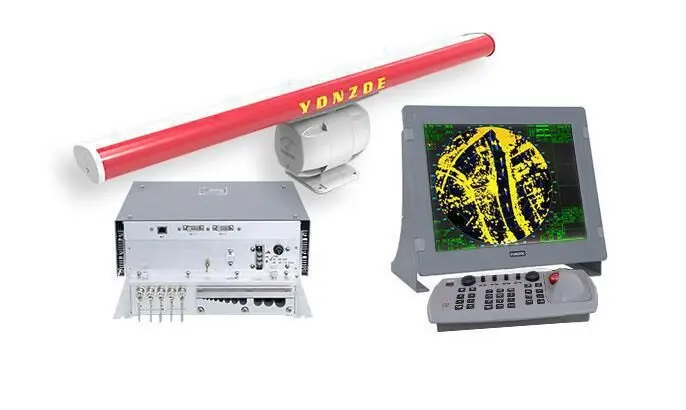

The Yonzoe YAR27-2725-20X is a smart and reliable radar system for marine use. It follows IMO rules and meets the latest standards like IEC60945 and IEC62388. In addition, it is MED certified for both B and D modes and has CCS approval, so it suits all ship types and sizes.
This radar gives you clear and fast detection, even of small objects. It can spot targets as small as 1.0 m², thanks to its advanced noise and clutter reduction. Whether it’s raining or the sea is rough, the radar still works well.

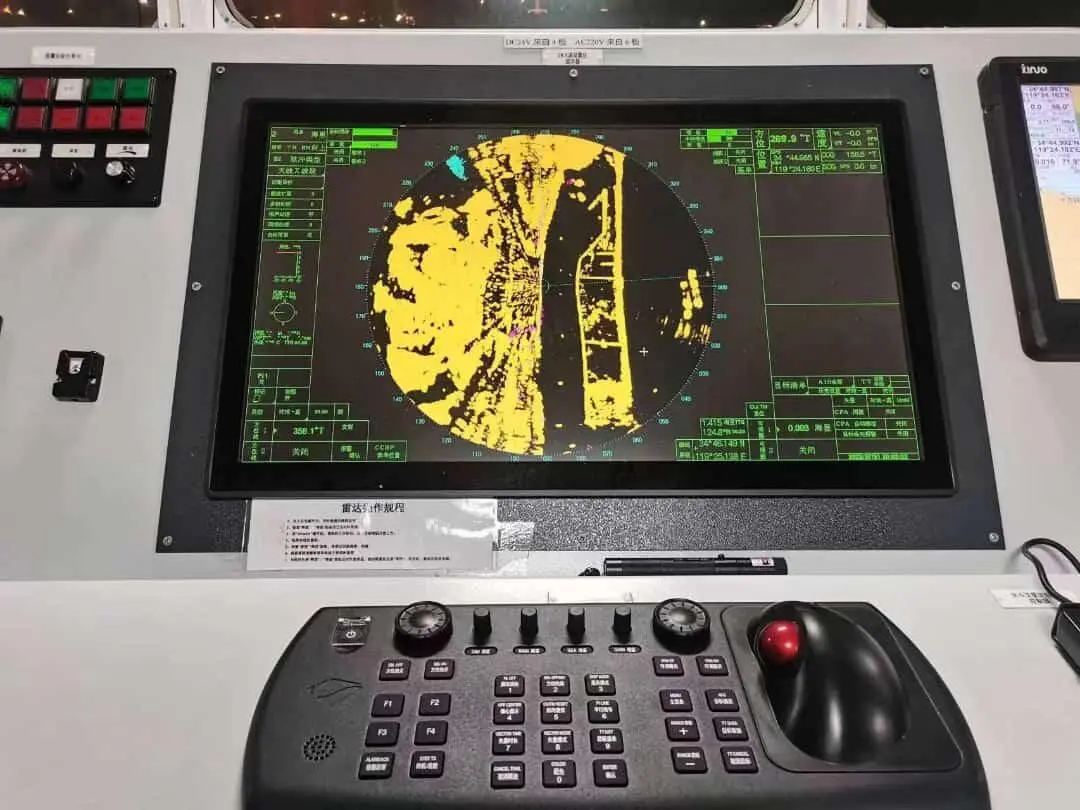

Moreover, it tracks up to 200 ARPA targets and 1000 AIS targets at once. These are shown clearly using either true or relative trails. The display uses color changes or monochrome to make it easy to read. You can also set up surveillance zones using your mouse or by entering exact coordinates.
It offers 200 waypoints and 30 navigation lines, which help guide your route. Plus, its modular design makes repairs and updates quick and simple. You don’t need extra tools to check its health, since it comes with a full self-test feature.
For added flexibility, it lets you enter heading and position manually. This is great for fixed platforms that don’t use a compass. You can choose between English or Chinese menus.
Even better, the radar is ready for performance monitoring. If needed, you can install a PM module anytime.
In short, the Yonzoe YAR27-2725-20X keeps you safe at sea with reliable, real-time data. It’s a smart choice for every captain.
Technical Specifications – Yonzoe YAR27-2725-20X Radar:
| Feature | Specification |
|---|---|
| Compliance | IEC60945, IEC62388, IMO, MED (B & D mode), CCS Type Approved |
| Radar Band | X-Band |
| Target Detection | Minimum RCS: 1.0 m² |
| Suppression Technologies | Noise, Wave Clutter, Rain Clutter |
| Target Tracking | 200 ARPA Targets (TT), 1000 AIS Targets |
| Trail Display | Relative/True with Mono or Gradual Color |
| Waypoints & Nav Lines | 200 Waypoints, 30 Navigation Lines |
| Surveillance Area | Polygon (Mouse or Lat/Long Input) |
| Self-Test Function | Fully Supported, Modular Design |
| Performance Monitor | Optional Built-in (PM Ready Antenna) |
| Heading/Position Input | Manual (Fixed Platforms) |
| Menu Language | Bilingual: Chinese / English |
