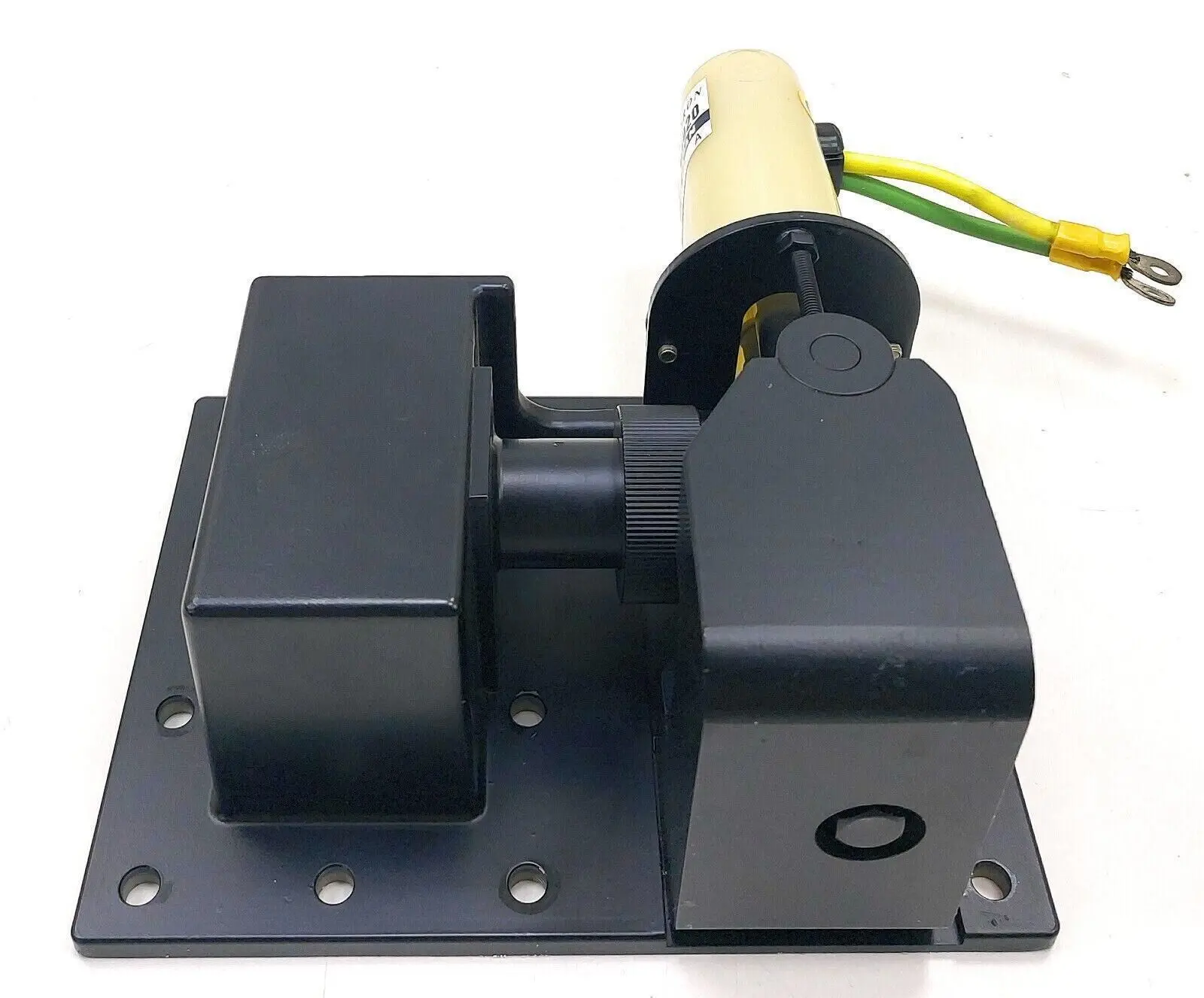

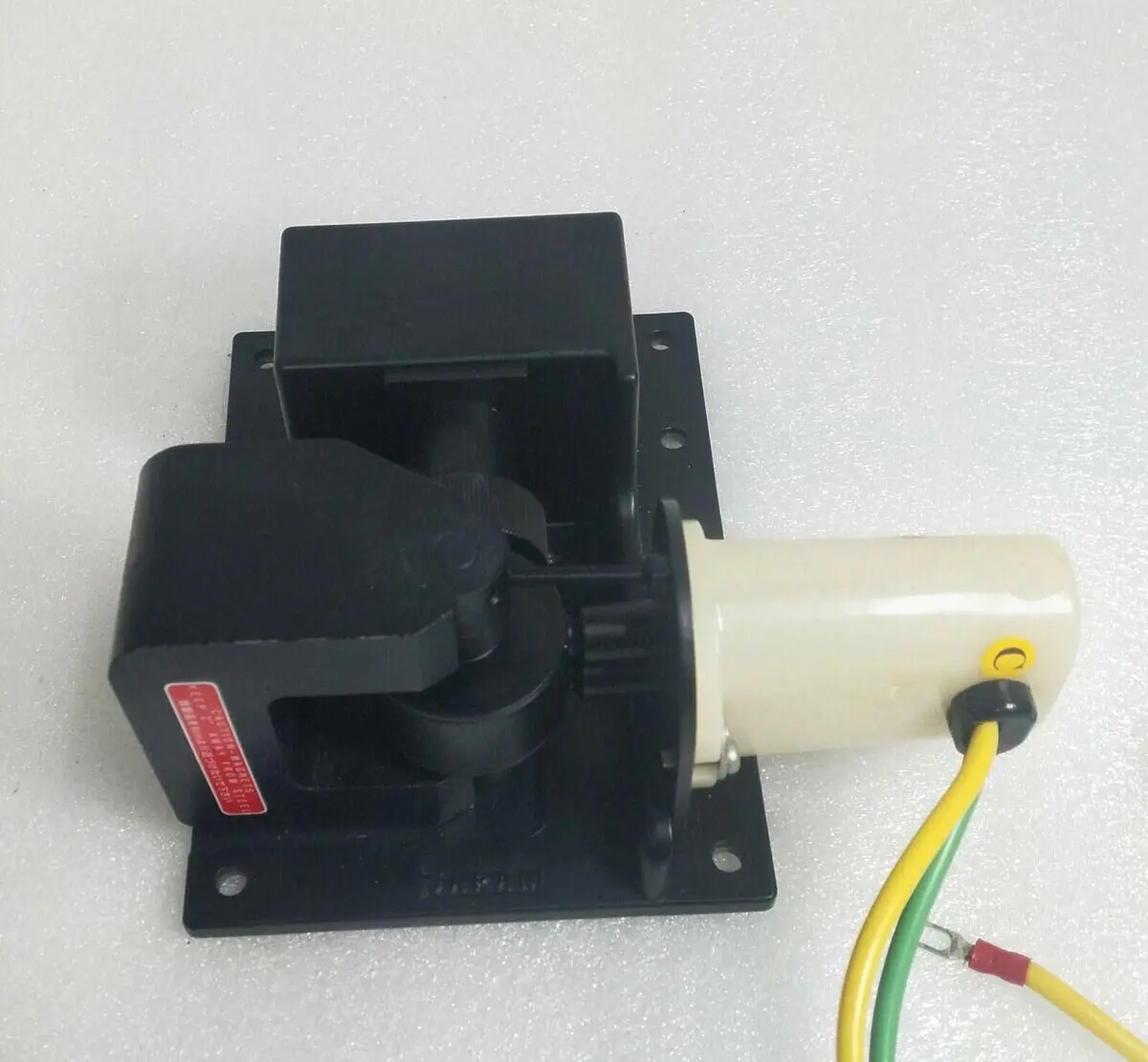

The M1302A Magnetron is a high-performance part created specifically for S-band radar systems. It operates within a stable frequency range of 3040-3060 MHz. This makes it ideal for applications where clear radar signals and steady power are essential. With a peak output power of 30 kW, the M1302A delivers the strength needed for consistent signal transmission, even under difficult conditions.
This M1302A Magnetron is designed to be both easy to use and durable. Weighing just 2.3 kg, it is lightweight, which makes installation simple and user-friendly. Additionally, each unit undergoes strict quality checks by the manufacturer. As a result, radar systems using the M1302A can rely on stable, long-term performance.
The M1302A has optimized features that enhance its efficiency. These include a 1 ms pulse duration, an 8 kV anode voltage, and a 6.3 V heater voltage. Together, these specifications create a powerful, efficient signal. Furthermore, the magnetron has a 0.001 duty cycle, which adds to its reliability and performance. For radar applications requiring precision, the M1302A Magnetron is a dependable choice.
Technical Specifications
- Frequency Range: 3040-3060 MHz
- Maximum Output Power: 30 kW
- Pulse Duration: 1 ms
- Duty Cycle: 0.001
- Anode Voltage: 8 kV
- Maximum Anode Current: 8 A
- Heater Voltage: 6.3 V
- Heater Current: 1.25 A
- Weight: 2.3 kg
