Description

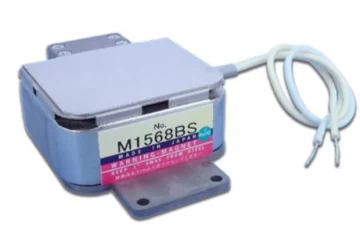

The M1568BS X-band magnetron delivers reliable and powerful performance for radar systems. Operating within a frequency range of 9380 MHz to 9440 MHz, this magnetron generates a peak output power of 25 kW, making it ideal for demanding radar applications such as marine and weather radar.
This M1568BS magnetron offers excellent electrical characteristics, including a heater voltage of 6.0V to 6.6V and a peak anode voltage of 7.2kV to 8.5kV. The unit is designed to provide stable and efficient performance with a peak output power of 25 kW and a pulse duration between 0.05 μs and 1.2 μs, ensuring precise signal generation.
The M1568BS is built to withstand high operational demands, with a maximum anode temperature of 110°C and a peak anode current range from 6.0A to 10.0A. It operates with a duty cycle of 0.001 and a high voltage rise rate of 100 kV/μs, delivering rapid and consistent radar performance. The VSWR at the output coupler is maintained at a maximum of 1.5:1, ensuring optimal signal efficiency.
With its robust design and dependable specifications, the M1568BS is an essential component for high-frequency radar systems, providing stable and high-powered output for a range of applications worldwide.
Technical Specifications:
- Frequency Range: 9380 – 9440 MHz
- Peak Output Power: 25 kW
- Heater Voltage: 6.0V – 6.6V
- Heater Current: 0.43A – 0.6A
- Peak Anode Voltage: 7.2kV – 8.5kV
- Peak Anode Current: 6.0A – 10.0A
- Pulse Duration: 0.05 μs – 1.2 μs
- Duty Cycle: 0.001
- Anode Temperature: 110°C
- VSWR at Output Coupler: 1.5:1
- Rate of Rise of Voltage Pulse: 100 kV/μs
- Maximum Anode Power Input: 75
