Description

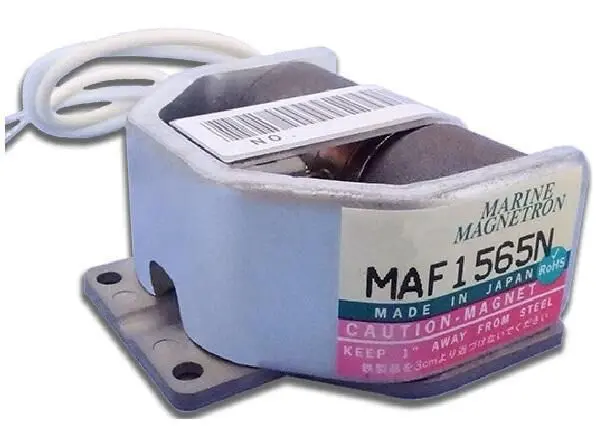

The MAF1565N X-band magnetron is a high-power device tailored for radar systems that operate at a fixed frequency. With a frequency range of 9380 to 9440 MHz and a peak output power of 10 kW, this magnetron is ideal for demanding applications where performance and reliability are essential. The MAF1565N provides consistent power output, making it suitable for high-frequency radar use, where stable, dependable operation is crucial.
This model features a heater voltage range of 6.0 to 6.6 V and requires a preheat time of 65 seconds, supporting rapid activation. It has a peak anode voltage range from 5.4 to 6.0 kV, ensuring efficient power delivery. The magnetron operates with a duty cycle of up to 0.001 and a pulse duration between 0.07 and 1.25 µs, delivering reliable performance within its specified operating parameters.
Designed for resilience, the MAF1565N can handle peak anode currents from 3.7 to 6.2 A, an average anode power input of up to 40 W, and an anode temperature up to 100°C. It also maintains stability with a maximum VSWR (voltage standing wave ratio) of 1.5:1 at the output coupler.
Technical Specifications:
- Operating Frequency: 9380 – 9440 MHz
- Peak Output Power: 10 kW
- Heater Voltage: 6.0 – 6.6 V
- Heater Current: 0.5 – 0.6 A
- Preheat Time: 65 seconds
- Peak Anode Voltage: 5.4 – 6.0 kV
- Duty Cycle: 0.001
- Pulse Duration: 0.07 – 1.25 µs
