Marinelite Saiyang Marine EML9000 Electromagnetic Speed Log

Description

## System Overview & Engineering Architecture

The Marinelite EML9000 Electromagnetic Speed Log is a precision marine navigation instrument engineered for accurate measurement of vessel speed through water and cumulative distance traveled. Operating on electromagnetic induction principles, the system detects the voltage induced as a vessel moves through the Earth’s magnetic field, translating this signal into reliable speed and mileage data for the bridge team. The EML9000 is designed for deployment across a broad spectrum of commercial vessel types, from coastal trading ships to offshore support vessels, where accurate speed-through-water measurement is essential for safe navigation, voyage efficiency, and regulatory compliance.

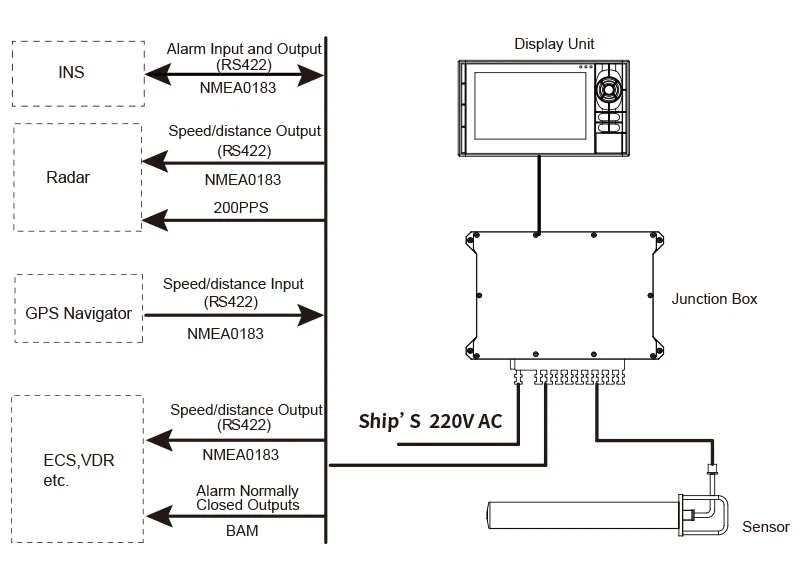

The EML9000 architecture is composed of several integrated units, each designed for a specific function within the overall measurement chain. The sensor unit, submerged beneath the hull, serves as the primary sensing element responsible for detecting the vessel’s speed through the water via electromagnetic induction. The data processing unit handles signal conditioning, computational processing, and data formatting for distribution across onboard networks. The display unit presents real-time speed and mileage information to the watchkeeping officer in a clear, high-resolution format. An optional display repeater unit extends visibility of critical speed and distance data to additional bridge positions, supporting safe navigation during watch rotations and multi-crew operations.

The system supports both single-axis and dual-axis measurement configurations, with the dual-axis option available as a configurable choice. Single-axis measurement provides speed data along the vessel’s longitudinal centerline, which is the standard requirement for most commercial navigation applications. Dual-axis capability adds transverse speed information, enhancing situational awareness during maneuvering operations such as docking, berthing, and towing. This configurable measurement direction makes the EML9000 adaptable to diverse vessel types and operational profiles across global trade routes.

## Core Features & Operational Advantages

### Wide Speed and Distance Measurement Range

The Marinelite EML9000 delivers a speed measurement range of -40 to +40 knots, accommodating vessels operating in both forward and reverse directions. The negative speed range enables accurate reverse transit monitoring, which is essential for docking operations, tug assist scenarios, and confined water maneuvering in ports such as Jebel Ali, Port Rashid, and Khalifa Port. The mileage measurement range spans from 0.0 to 99,999.9 nautical miles, providing comprehensive voyage tracking capability suitable for long-haul ocean passages and extended fleet operations across international trading routes.

### Measurement Accuracy

Speed accuracy is specified at ±2% or 0.2 knots, whichever is greater, ensuring reliable performance across the full operational speed envelope from low-speed maneuvering conditions to higher transit speeds. Mileage accuracy is maintained at ±2% or 0.2 nm/h, whichever is greater. These accuracy parameters meet the demands of professional marine navigation where precise distance recording is critical for voyage planning, fuel consumption calculations, charter compliance, and passage log documentation.

### High-Visibility LCD Display

The integrated LCD display delivers a resolution of 800 × 480 pixels with an illumination intensity of 600 cd/m², ensuring clear and legible readouts under varying bridge lighting conditions, from bright daylight to nighttime navigation and low-visibility operations. The unit indication visible distance is specified at 0.85 meters, allowing watchkeeping personnel to read speed and mileage data from their standard bridge positions without strain or the need to approach the display closely. The system language supports both Simplified Chinese and English, accommodating multilingual bridge teams operating on international vessels trading across Asia, the Middle East, and beyond.

### Comprehensive NMEA Communication Interface

The EML9000 provides extensive digital communication capabilities for seamless integration with modern bridge systems and navigation networks. The NMEA 0183 interface complies with IEC 61162-1 Ed 5, supporting input and output for up to 6 units simultaneously. This enables the EML9000 to serve as a central speed data source for multiple displays, chart plotters, ECDIS systems, and navigation processors onboard. An optional NMEA 2000 interface (1 unit) facilitates integration with NMEA 2000 backbone networks, supporting plug-and-play connectivity with compatible multifunctional displays and navigation instruments.

The system provides 2 PPS (Pulse Per Second) outputs for precise timing synchronization with GPS receivers and other timing-sensitive navigation equipment. Optional speed analog current output (2 channels) and speed analog voltage output (2 channels) offer backward compatibility with legacy analog instrumentation systems, ensuring the EML9000 can be integrated into vessels with mixed analog-digital bridge architectures, including older tonnage and established fleet vessels.

### Standard and Optional Output Sentences

Standard NMEA 0183 output sentences include VBW (Body Wind Speed and Angle) and VLW (Distance Through Water). An extensive library of optional output sentences is available, including ALF, ALC, ARC, HBT, RMC, GGA, GNS, GLL, DTM, HDT, and VTG. Input sentences supported optionally include ACN, RMC, GGA, GLL, VTG, and HBT. It is important to note that output sentences are only available when the system receives the corresponding input sentence data, ensuring data integrity and consistency across the NMEA network ecosystem.

## Component Breakdown & Technical Specifications

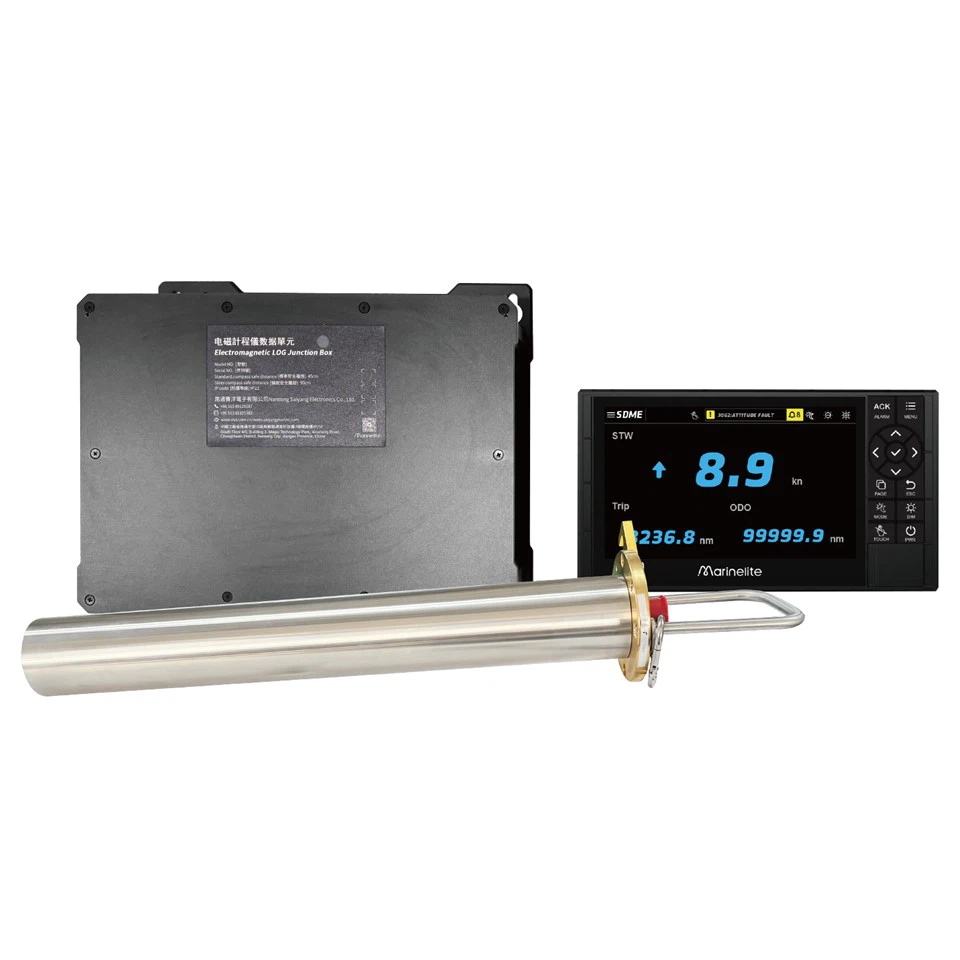

The Marinelite EML9000 Electromagnetic Speed Log comprises four primary components, each with distinct environmental ratings and installation requirements:

– **Display Unit**: The primary visual interface featuring the LCD 800 × 480 display, rated IP22 for protection against dripping water. The display unit is intended for indoor bridge installation in a protected environment away from direct exposure to seawater.
– **Display Repeater**: An optional remote display unit rated IP67, providing protection against temporary submersion and powerful water jets, enabling flexible bridge positioning for enhanced crew visibility.
– **Data Unit**: The central processing and communication hub rated IP22, responsible for signal conditioning, NMEA data formatting, network distribution, and management of all input and output sentence configurations.
– **Sensor Unit**: The submerged transducer rated IP68, providing complete protection against dust ingress and continuous immersion in seawater. The sensor unit must be installed below the waterline, typically through a hull-mounted fitting or a dedicated through-hull installation, and is subject to the sensor unit ambient temperature range of -5°C to +35°C.

## IEC & Industry Compliance

The Marinelite EML9000 is designed and manufactured in accordance with relevant international standards governing marine navigation equipment. The NMEA 0183 communication interface complies with IEC 61162-1 Ed 5, ensuring standardized digital data exchange with other navigation equipment onboard and across bridge networks. Vibration resistance testing and compliance are conducted per IEC 60945 Ed.4, confirming the system’s ability to withstand the mechanical environment encountered on commercial marine vessels, including engine vibration, wave impact, and bridge equipment operational stresses.

These compliance certifications demonstrate the EML9000’s suitability for professional marine navigation applications on commercial vessels. For specific classification society approvals (such as DNV, ABS, Lloyd’s Register, or equivalent), vessel operators should consult Seanav Marine’s technical team or the manufacturer directly to confirm the applicable approvals for their vessel type, trading area, and flag state requirements.

## Onboard Maintenance & Inspection Standards

To maintain optimal measurement accuracy and long-term reliability of the Marinelite EML9000, a structured onboard maintenance and inspection regime is recommended. The IP68-rated sensor unit should be inspected during scheduled dry-dock or haul-out periods for biofouling accumulation, physical damage to the transducer body, and integrity of electrical connections and cable glands. Biofouling on the sensor surface can degrade measurement accuracy over time and should be cleaned according to the manufacturer’s guidelines using appropriate non-abrasive methods.

The display unit and data unit should be periodically checked for display clarity, menu navigation functionality, and communication integrity with the onboard NMEA network. Calibration verification against a known speed reference, such as a calibrated tow test or GPS-derived speed comparison, should be performed in accordance with the manufacturer’s recommended calibration interval to ensure continued compliance with the specified accuracy parameters of ±2% or 0.2 kn.

Seanav Marine offers professional [Marine Speed Log Repair Service in JNPA](https://seanav.org/marine-speed-log-repair-service-in-jnpa/) and comprehensive maintenance programs for the Marinelite EML9000 and comparable electromagnetic speed log systems. Our certified technicians can perform sensor recalibration, display unit diagnostics, data unit diagnostics, and full system overhaul to ensure continued compliance with operational accuracy specifications and class requirements.

For vessels requiring [Marine Speed Log service provider](https://seanav.org/marine-speed-log-service-provider-67/) support across UAE ports, Seanav Marine maintains service capabilities at Jebel Ali Port, Port Rashid, Khalifa Port, Port of Fujairah, and Khor Fakkan, ensuring rapid response, minimal vessel downtime, and continuity of navigation equipment reliability for commercial fleet operations in the region.

## Technical Support & Port Delivery

The Marinelite EML9000 Electromagnetic Speed Log is available through Seanav Marine with full technical support, installation guidance, commissioning assistance, and spare parts supply for the UAE and global maritime markets. For technical inquiries, spare parts availability, installation specifications, or to [Request a Quote](https://seanav.org/contact), contact the Seanav Marine technical team at service@seanav.org.

Seanav Marine supports vessel operators across major UAE ports including Jebel Ali Port, Port Rashid, Khalifa Port, Port of Fujairah, and Khor Fakkan, providing prompt delivery and expert technical assistance for the Marinelite EML9000 Electromagnetic Speed Log. For additional product information, specifications, and OEM documentation, refer to the [Official OEM Product Reference Page](https://www.saiyangmarine.com/marine-speed-log/electromagnetic-log.html).
