Description

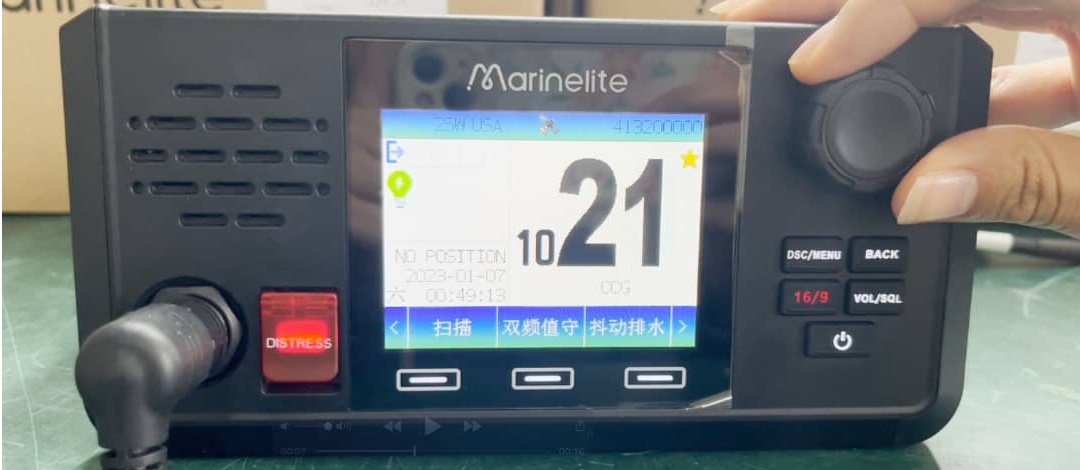

The Marinelite VHF9000 Class A GMDSS VHF is a full-featured marine radio engineered for SOLAS vessels, commercial ships, and offshore operations. With a rugged, waterproof body (rated IP56), touchscreen controls, and built-in Digital Selective Calling (DSC), it’s designed to keep you safe and connected.
Built to meet and exceed IMO regulations like MSC.1/Circ.1460/Rev.3, the VHF9000 supports 4-digit channel formats and complies with IEC 61097, IEC 62923, and ITU-R M.493-15 standards. Whether you’re coordinating port entry or broadcasting a distress call, the Marinelite VHF9000 ensures your voice is heard.
A dedicated CH70 DSC receiver allows for automated emergency signaling. The integrated GPS supports position reporting, while dual-watch and tri-watch functions keep you alerted to key channels. It also supports NMEA0183-2.0, making it easy to integrate with existing bridge systems.
Designed for the real-world marine environment, this radio is compact and powerful, offering 25W/1W output. The device operates on DC 12V, consuming low power while maintaining high signal clarity. The intuitive touchscreen and knob combo interface ensures fast access to key functions—even with gloves on.
Built-in weather alert channels keep your crew informed in real time. It also features priority channel scanning, making it ideal for both routine and emergency communication.
Choose the Marinelite VHF9000 for reliable, compliant, and future-ready marine communications.
🔹 Technical Specifications
General
| Feature | Specification |
|---|---|
| Frequency Range | TX: 156.000–162.000 MHz RX: 156.000–163.450 MHz |
| Mode | FM (16K0G3E), DSC (16K0G2B) |
| Power Supply | DC 12V (−10% / +30%) |
| Antenna Impedance | 50Ω |
| Size (W × H × D) | 220 × 98.5 × 161.5 mm |
| Weight | 1400g (±2%) |
| DSC Class | Class A |
| DSC Receive Sensitivity | ≤ −111 dBm (1% BER) |
| Waterproof Rating | IP56 |
| Channel Spacing | 25 kHz |
Transmitter
| Feature | Specification |
|---|---|
| Output Power | 25W / 1W |
| Max Frequency Offset | ±5 kHz |
| Adjacent Channel Power | ≤ −70 dB |
| Signal-to-Noise Ratio | ≥ 40 dB |
| Current Consumption | High: ≤ 5.5A Low: ≤ 1.5A |
| Input Impedance | 2kΩ (Microphone) |
Receiver
| Feature | Specification |
|---|---|
| Receive Sensitivity | ≤ −120 dBm (12 dB SINAD) |
| Spurious Response | ≥ 70 dB |
| Adjacent Channel Selectivity | ≥ 70 dB |
| Intermodulation Immunity | ≥ 68 dB |
| Audio Output Power | ≥ 4.5W (10%) |
| GPS Data Format | NMEA0183-2.0 |
| Output Impedance | 4Ω (Speaker) |
