Description

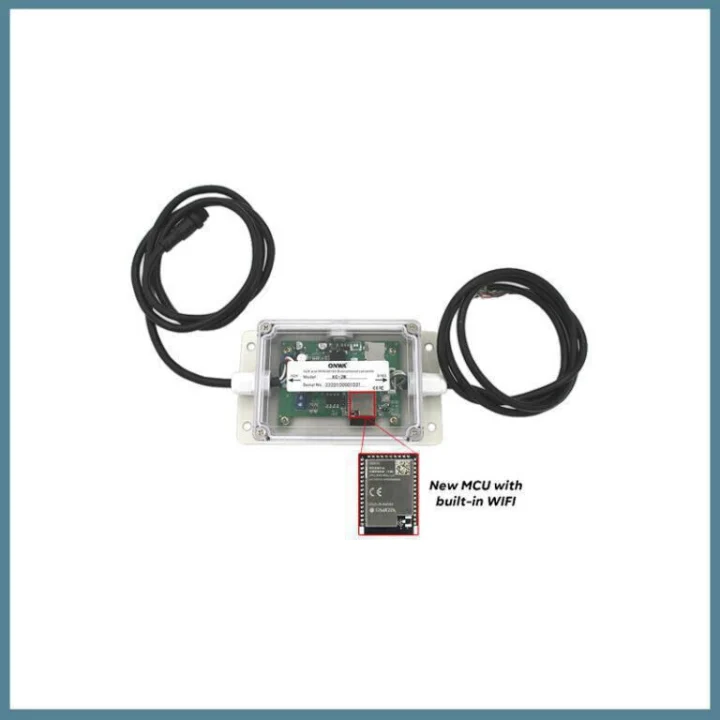

The Onwa Marine KC-2W NMEA Converter is designed to facilitate the integration of different marine electronics by converting data from NMEA 0183 to NMEA 2000 and vice versa. This ensures seamless communication between devices that use different communication protocols, enhancing overall system functionality. The converter is robust and reliable, with a compact design that makes it easy to install on various types of vessels. It supports a wide range of devices, including GPS, radar, chartplotters, and other navigational tools, making it a vital component for modern marine systems.
Technical Specifications & Conversion Parameters
| Specification | Parameter |
|---|---|
| Conversion Direction | Bidirectional NMEA 0183 to NMEA 2000 and NMEA 2000 to NMEA 0183 |
| Supported Baud Rates | 4800 bps (standard navigation) and 38400 bps (high-speed AIS / heading) |
| Electrical Isolation | Galvanic opto-isolation on NMEA 0183 signal lines to prevent ground loop interference |
| Power Consumption | Powered directly from NMEA 2000 bus (Load Equivalency Number: 1, <50mA) |
| Diagnostics | Dual-color LED indicators for network power, N2K traffic, and NMEA 0183 activity |
| Enclosure | Compact flame-retardant ABS housing with mounting flanges |
The Onwa KC-2W NMEA Converter bridges traditional NMEA 0183 marine instruments with modern NMEA 2000 CAN bus backbones, enabling legacy transducers, autopilots, and compasses to interface with modern multifunction displays.
Manufacturer documentation and compatibility
Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
