Description

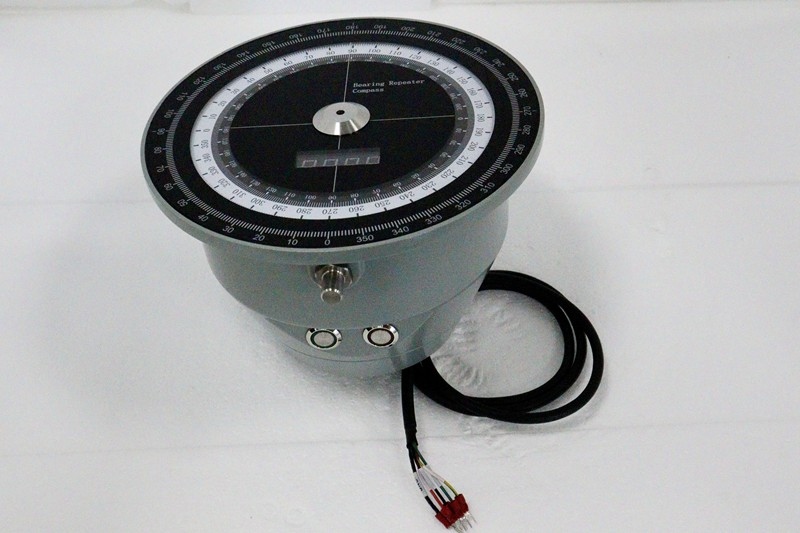

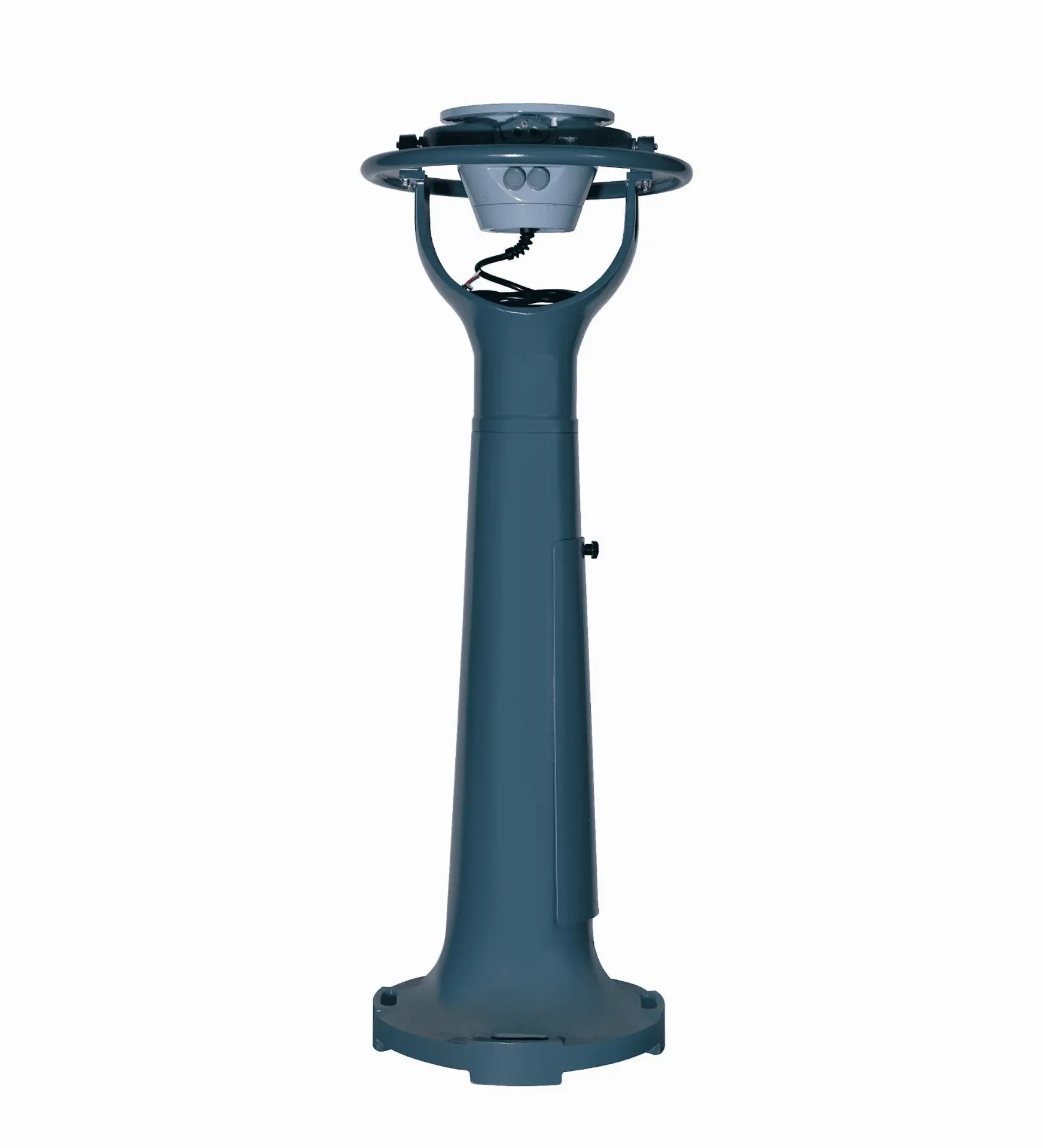

The TengFei 16-F is an IP66 watertight gimballed marine bearing repeater compass designed for outdoor bridge wing mounting to take visual bearings of navigation landmarks.

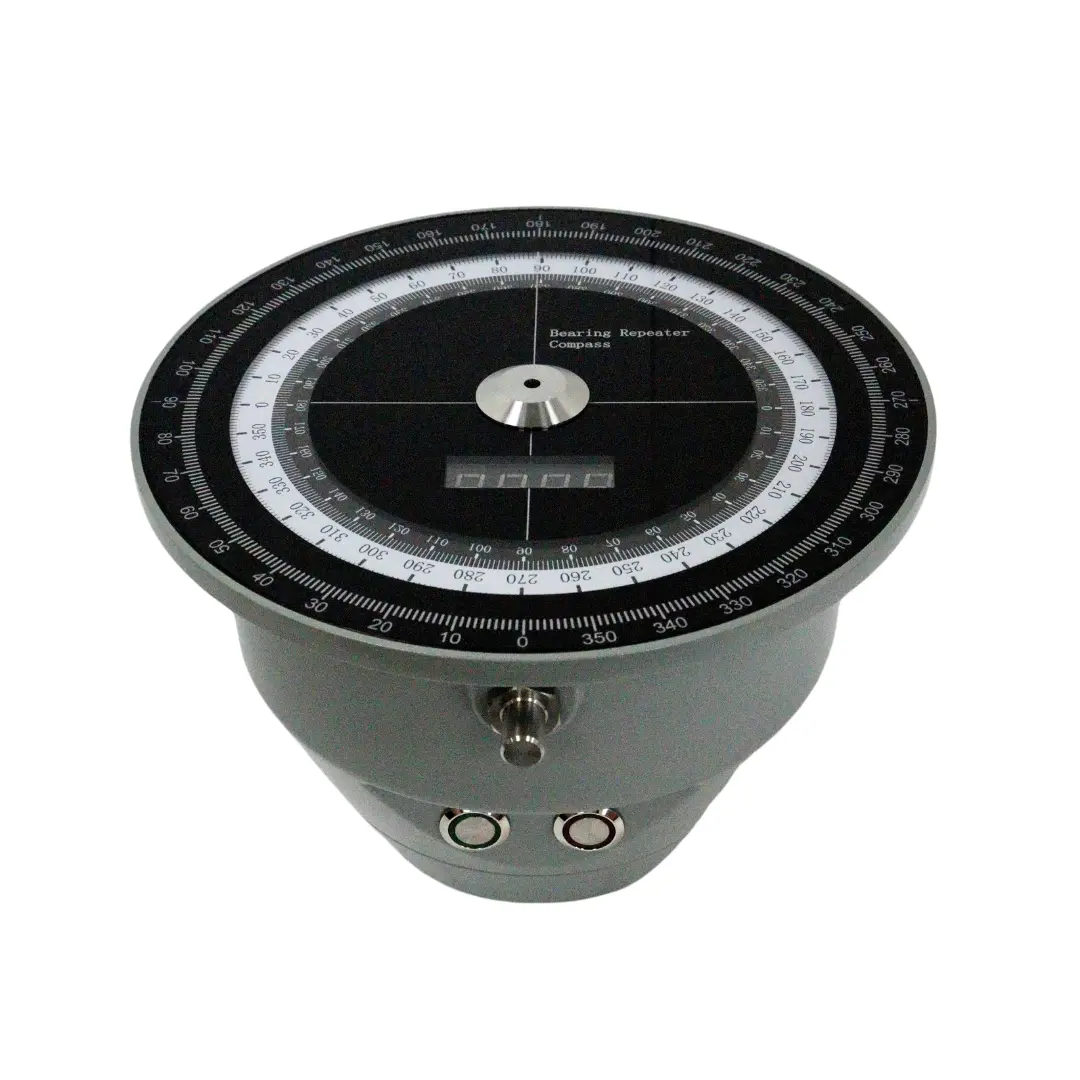

The TENGFEI 16-F Bearing Repeater Compass is a robust and dependable marine navigation instrument manufactured by Shenzhen Tengfei Nautical Instruments, trusted for precision and reliability in critical seafaring operations. This repeater compass is specifically designed to repeat the ship’s true heading transmitted from the master gyro compass, offering real-time, accurate bearing data essential for bridge control, course correction, and coastal navigation.

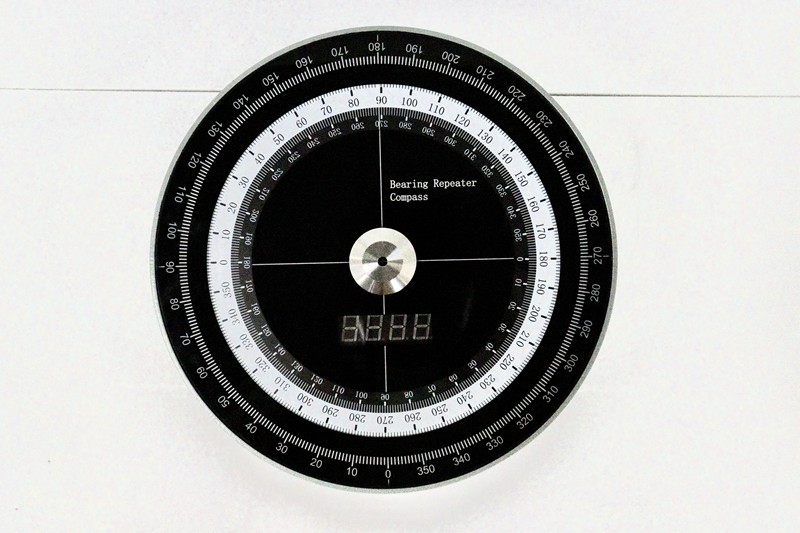

Constructed with a durable, marine-grade casing, the 16-F is built to withstand harsh maritime conditions, including saltwater exposure and heavy vibration. Its high-contrast, easy-to-read dial ensures quick visual reference, even under low-light conditions, making it highly effective during night operations or in adverse weather.
Technical Parameter:
-
Internal dial diameter (compass card): ~ 246 mm
-
Outer bezel diameter: ~ 250–254 mm
| Item | Data |
| Resolution | 0.025° |
| Reading Accuracy | 0.5° |
| Levels of Protection | IP56 |
| Electrical Parameters Voltage | 24VDC |
| Consumed Power | About 6W |
| Heading Serial Interface | RS422 or RS232 (NMEA) |
| Ambient Temperature | -25°C to +45°C |
Frequently Asked Technical Questions
What transmission inputs drive the TengFei 16-F bearing repeater?
It accepts standard NMEA 0183 heading sentences ($HEHDT) or stepper/synchro inputs from commercial master gyrocompasses.
Manufacturer documentation and compatibility
Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
