Description
The Tengfei CGF-165 is an IMO-approved vertical projection standard magnetic compass system mounted on monkey islands, projecting card heading directly down to the wheelhouse steering stand.
Precision Navigation with Flexible Installation: The TengFei CGF-165 Projection Magnetic Compass (Complete System with Bridge and Monkeydeck stand)

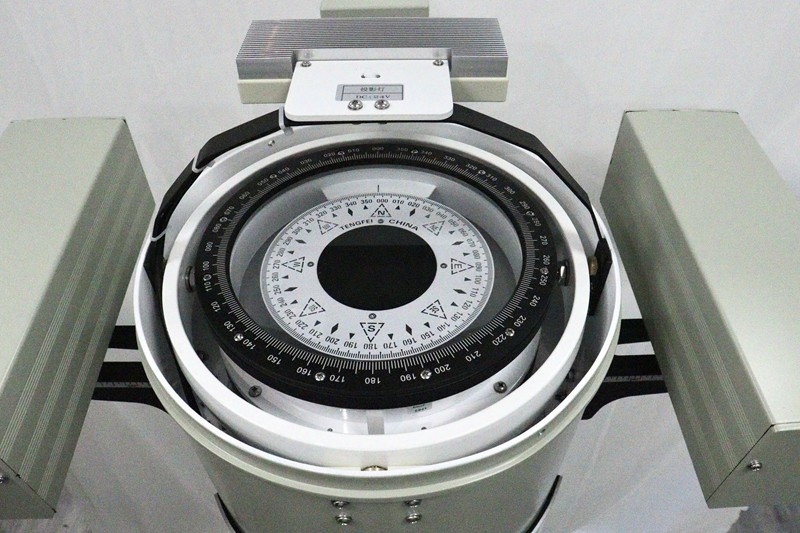

The TengFei CGF-165 Projection Magnetic Compass is a state-of-the-art vertical liquid magnetic compass system engineered for superior performance and unwavering reliability. Designed and manufactured in strict accordance with ISO 449 (Ships and Marine Technology – Marine Magnetic Compasses, Binnacles and Azimuth Readers), it fully complies with the rigorous standards required by ISO and IMO for essential navigation equipment.
Complete Navigation Solution
This comprehensive set includes everything required for professional marine navigation installation:
-

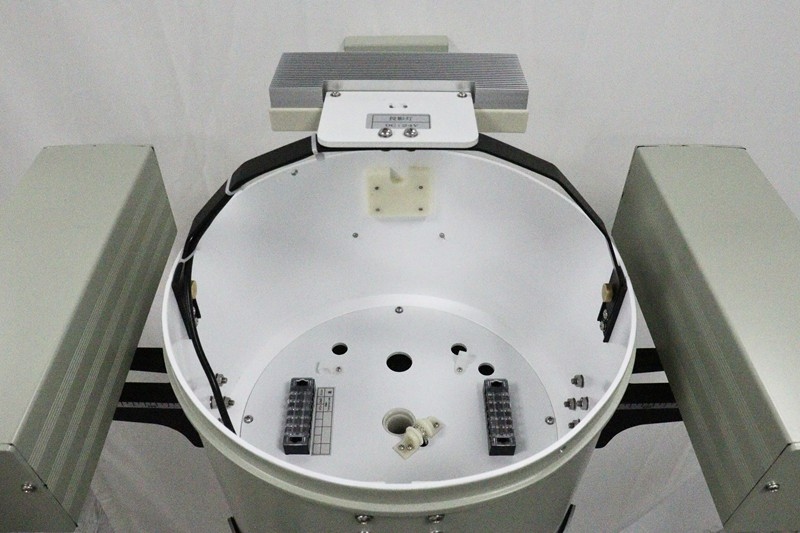

CGF-165 Binnacle Stand – Robust foundation for secure mounting
-
CGF-165 Projector Cylinder (Optical Device) – High-quality optical projection system
-

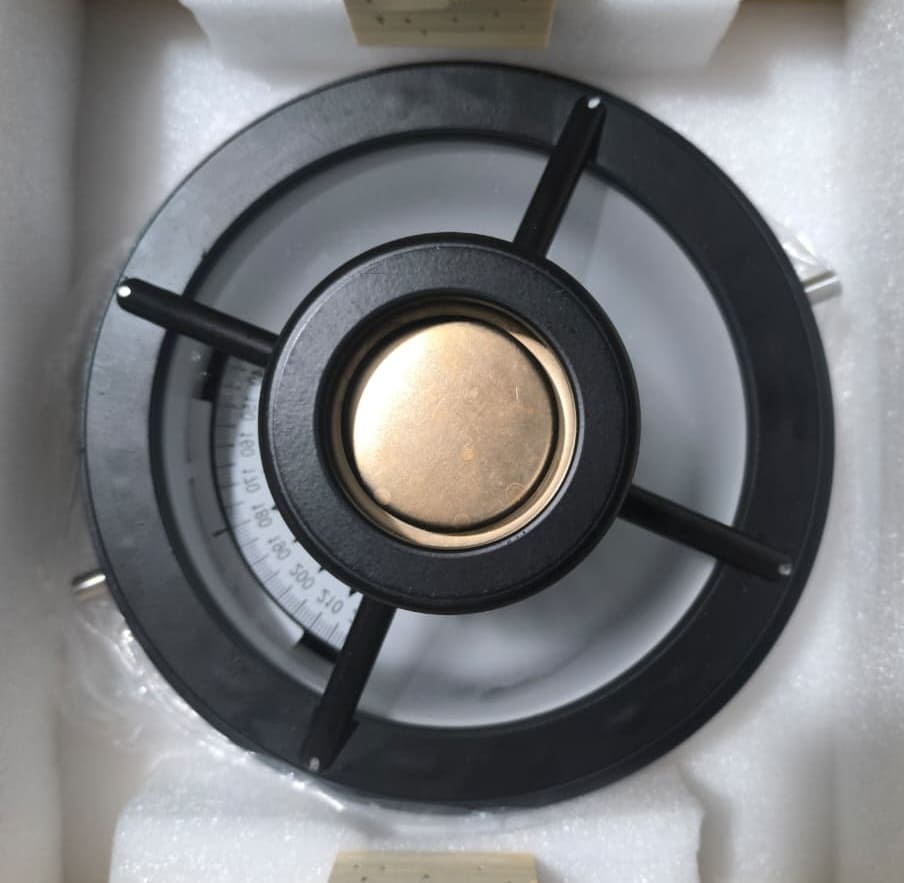

CGF-165 Compass Bowl – Precision liquid-damped 165mm compass unit (independently packed)
-
CGF-165 Illumination Controller – Dual-power lighting control (AC220V/DC24V)
-
CGF-165 Reflector Device (700mm) – Clear reflective reading system
-
Full Correction Components – Complete set of magnetic rods and correctors
-
Comprehensive Documentation – Includes CCS Certificate and all essential manuals
Designed for Harsh Marine Environments

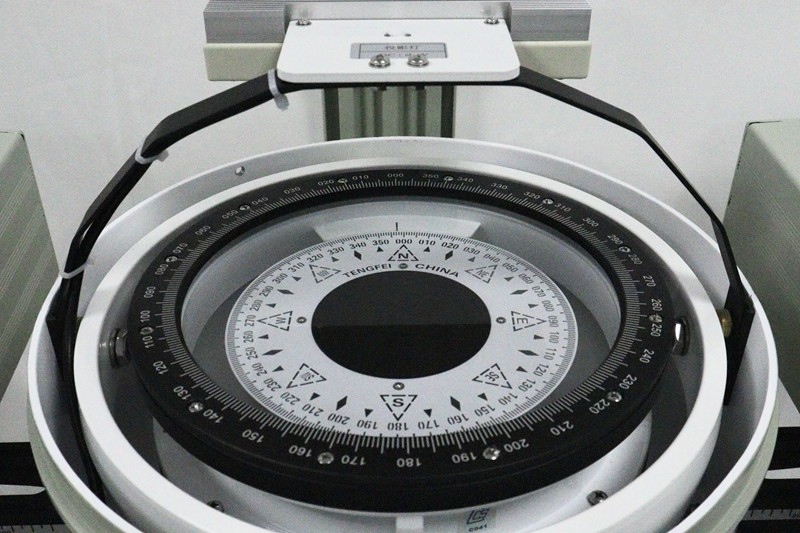

Built to withstand the rigors of the sea, the CGF-165 boasts high precision and stable performance, making it suitable for prolonged use even under inclement weather conditions during ship sailing. The large Φ165mm dial features clear 1° graduations from 0° to 360°, ensuring excellent readability at a glance.
Innovative Projection Design
A key advantage of this model is its unique projecting tube, which is inserted into the bottom of the compass from the wheelhouse. This design offers unparalleled flexibility:
-
Easy Installation: Adapts to various wheelhouse configurations.
-
Convenient Maintenance: Allows for quick and simple servicing.
-
Accessible Cleaning: Enables disassembly of the imaging glass for cleaning at any time, ensuring long-term optical clarity.
The length of the projection cylinder can be configured based on the height of the ship’s cab (ranging from 60mm to 1200mm), making it suitable for different ship types and bridge layouts.
Comprehensive Correction Capabilities
The complete set includes all necessary components for precise magnetic deviation correction:
-
Main Semicircle Deviation Adjusting Magnetic Rods (12 pieces)
-
Tilt Deviation Adjusting Magnetic Rods (3 pieces)
-
Sub Semicircle Deviation Correction Magnets (11 pieces)
-
Flinders’ Bars (8 pieces) for quadrantal correction
-
Complete mounting hardware including clamping bolts (4 groups) and rubber packing
Complete Spare Parts & Accessories
A dedicated spare parts box includes:
-
LED replacement light
-
Frosted glass and mirror (one each)
-
Compass refill solution (1 bottle)
-
Horizontal shaft sleeve and compass shaft sleeve (2 pieces each)
Professional Documentation
Every set includes complete documentation for compliance and reference:
-
Instruction manual
-
Asbestos free certificate
-
Quality certificate
-
Packing list
-
CCS Certificate (China Classification Society)
Genuine Replacement Parts Available
To ensure long-term serviceability, genuine spare components are available for the CGF-165 system. The TengFei CGF-165 Magnetic Compass Spare Bowl is a direct replacement part featuring the same 165mm liquid-damped dial and high-precision internals, allowing for quick field replacement and minimal downtime.
Whether you are operating a large vessel or training at a maritime academy, the complete TengFei CGF-165 system provides the professional-grade accuracy and robust construction required for safe and effective navigation.
Complete Set Components
| Item | Quantity |
|---|---|
| CGF-165 Binnacle Stand | 1 set |
| CGF-165 Projector Cylinder (Optical Device) | 1 piece |
| CGF-165 Compass Bowl (Independent packing in carton) | 1 piece |
| CGF-165 Illumination Controller | 1 piece |
| CGF-165 Reflector Device (700mm) | 1 piece |
| Rubber Packing | 1 piece |
| Clamping Bolt | 4 groups |
Components for Correcting
| Correction Component | Quantity |
|---|---|
| Main Semicircle Deviation Adjusting Magnetic Rod | 12 pieces |
| Tilt Deviation Adjusting Magnetic Rod | 3 pieces |
| Sub Semicircle Deviation Correction Magnets | 11 pieces |
| Flinders’ Bar | 8 pieces |
Spare Parts Box Contents
| Spare Part | Quantity |
|---|---|
| LED Light | 1 piece |
| Frosted Glass | 1 piece |
| Mirror | 1 piece |
| Compass Supplement (Refill Solution) | 1 bottle |
| Horizontal Shaft Sleeve | 2 pieces |
| Compass Shaft Sleeve | 2 pieces |
Provision of Information
| Documentation | Quantity |
|---|---|
| Instruction Manual | 1 copy |
| Asbestos Free Certificate | 1 copy |
| Quality Certificate | 1 copy |
| Packing List | 1 copy |
| CCS Certificate (China Classification Society) | 1 copy |
Technical Specifications
| Specification | Data |
|---|---|
| Dial Diameter | Φ 165mm |
| Dial Division | 0°~360°, 1° per graduation |
| Indication Error | ≤0.5° |
| Semi-period | ≤8.28s |
| Friction Error | ≤0.08° |
| Main Semicircular Deviation Correction | 1°~45° |
| A Semicircular Deviation Correction | 1°~6° |
| Quadrant Deviation Correction | 0.5°~6° |
| Heeling Error Correction | -75 ~ +75μT |
| Barrel Extension Range | +/- 50mm |
| Disk Image Magnification | ~2x |
| Lighting Power Supply | AC220V, DC24V |
| Projection Tube Length | 60mm – 1200mm (Configurable) |
| Overall Dimensions (LWH) | 760 x 550 x 1380mm |
| Carton Size | 813 x 578 x 1540mm |
| Mounting Hole Size | 420mm, Φ14 |
| Net Weight | 70kg |
| Packing Case Weight | 6kg |
| Power Specification | AC 220V 50Hz / DC 24V |
| Replacement Part | CGF-165 Spare Bowl Available → |
