Description
MKS070 — product overview
An AC adapter used with CMZ900B/CMZ900B2 installations to accommodate the ship’s AC supply and the compass system’s DC power arrangement.
SEANAV MARINE selling price: AED 10,304, excluding tax. Availability and delivery time are confirmed with your quotation.
Key features and application
- Adapter order code must match the vessel’s AC voltage
- AC adapter and dual AC adapter are different products
- Separate from the MKR040 operation unit
Technical specifications
| System application | CMZ900B / CMZ900B2 |
|---|---|
| AC selections in manufacturer catalogue | 100 / 110 / 115 / 220 V AC, single phase |
| Frequency | 50 / 60 Hz |
| Backup supply in system diagram | 24 V DC |
| Catalogue mass | 10.5 kg |

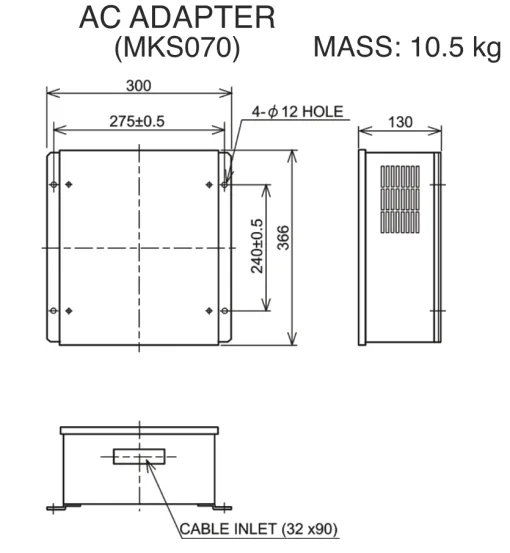

| Outline in manufacturer drawing | 300 × 366 × 130 mm |
Supply scope and installation
MKS070 adapter; input selection, backup connections and scope must be confirmed on the supplied unit.
Provide the complete model suffix, equipment nameplate and relevant mounting or wiring drawing so SEANAV MARINE can match the supplied item to the vessel. Manufacturer drawings and nameplate ratings govern installation. Measurements tied to a specific variant are identified above.
Product questions
What is MKS070 used for?
An AC adapter used with CMZ900B/CMZ900B2 installations to accommodate the ship’s AC supply and the compass system’s DC power arrangement.
What is included in this price?
MKS070 adapter; input selection, backup connections and scope must be confirmed on the supplied unit. The listed AED 10,304 is taken from SEANAV’s April 2026 accessory price list. Confirm current validity, freight and any additional installation items.
How do I order the correct version?
Send the complete MKS070 order reference, quantity, vessel name, existing equipment photographs and delivery port to SEANAV MARINE. Include the fitted equipment’s electrical ratings and required completion date where applicable.
Manufacturer images and drawings
Manufacturer documents
- YDK Technologies CMZ900 manufacturer catalogue (2020)
- Yokogawa GS80B10M18E — CMZ900B2 general specifications (2018)
Specifications above identify their relevant model or drawing variant. Legacy manufacturer references are provided for technical identification; confirm the current delivered configuration before purchase.
Compare YDK Technologies accessories · Gyrocompass service enquiries
Manufacturer documentation and compatibility
Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
