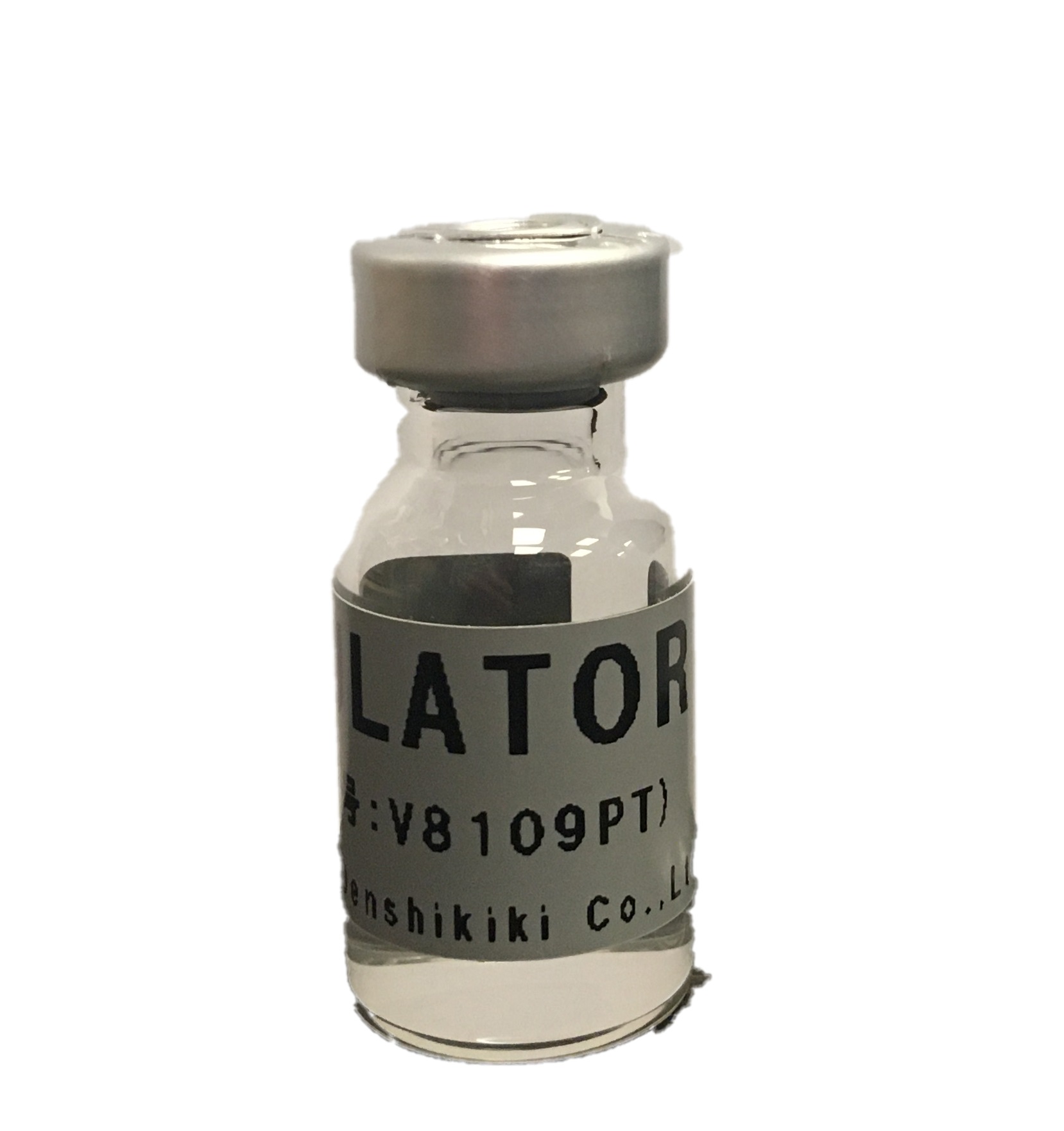

YDK Technology Yokogawa V8109PT Insulator for KT005

The YDK Technology Yokogawa V8109PT Insulator is a critical OEM component designed for the KT005 gyrosphere. It plays a vital role in the annual maintenance of Yokogawa CMZ-500 and CMZ-700 gyrocompasses. This small but essential part ensures the system remains precise and dependable at sea.

Inside the gyrosphere, the insulator works as a physical barrier between two key fluids — mercury and the supporting liquid. During annual service, both fluids are present within the gyro, and the V8109PT ensures they remain completely separated. This separation is crucial for the accurate functioning of the gyrocompass.

In addition to fluid separation, the V8109PT provides electrical isolation for the center pin. The mercury acts as part of the electrical connection, and without proper insulation, unintended current flow could cause performance issues or damage. By ensuring stable isolation, this component safeguards the gyrocompass’s electrical integrity.

Using genuine YDK Technology parts during service prevents operational errors and prolongs equipment lifespan. The V8109PT is specifically engineered for the KT005 gyrosphere, guaranteeing precise fit and compatibility with OEM standards.

When replaced during the scheduled maintenance cycle, this insulator helps maintain the high accuracy and stability demanded in marine navigation. For ship operators, ensuring that the gyrocompass functions flawlessly is essential for safety, efficiency, and compliance with maritime standards.

Choose the V8109PT Insulator to protect your investment, maintain navigational accuracy, and meet the manufacturer’s service requirements.

Technical Specifications

• Model Number: V8109PT

• Product Type: Gyrocompass Insulator

• Manufacturer: YDK Technology

• Application: Annual service for Yokogawa CMZ-500 and CMZ-700 gyrocompasses

• Associated Part: KT005 Gyrosphere

• Function: Separates mercury and supporting liquid; provides electrical isolation for the center pin

• Service Requirement: Replace during annual maintenance
