Description

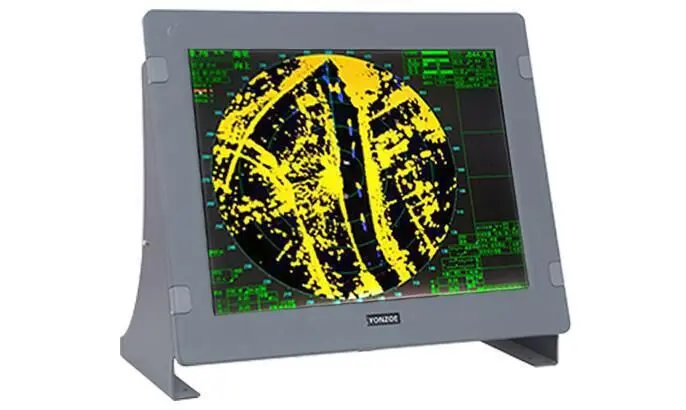

The Yonzoe YAR27-1912-20X is a type-approved IMO commercial marine X-band ARPA radar featuring advanced solid-state target processing, high-speed turning pedestal, and ECDIS overlay.
The YONZOE YAR27-1912-20X is a smart marine radar built for reliable ship navigation. It meets IMO rules and follows IEC60945 and IEC62388 standards. Plus, it has CCS and EU MED B and D mode approvals.
This radar sees very small targets, even those as tiny as 1.0 m². It works well in fog, rain, or rough waves. That’s because it uses noise, wave, and rain clutter filters. So, you get clear radar views every time.
You can track 200 ARPA targets and 1000 AIS targets with ease. The radar combines both for accurate information. Also, it shows true and relative trails with color or black-and-white display. This helps identify ships quickly.
Need more control? You can set up 200 waypoints and draw 30 navigation routes. You can even mark custom surveillance zones with your mouse or by entering exact coordinates.
The radar runs a full self-test anytime. Its modular build means it’s easy to fix. Also, you don’t need a compass. You can manually input the ship’s heading and position. The menu is simple and supports English and Chinese.
Do you need future upgrades? The antenna is ready for a performance monitor (PM). You can add it later without replacing parts.
This radar is great for cargo ships, patrol boats, and all marine vessels. Choose the YAR27-1912-20X for safe and smooth voyages.
Technical Specifications:
-
Radar Type: IMO Approved ARPA X-Band Radar
-
Compliance: IEC60945, IEC62388
-
Certificates: CCS, EU MED B and D mode
-
Target Detection: RCS ≥ 1.0 m²
-
ARPA Targets: Up to 200
-
AIS Targets: Up to 1000 (with fusion)
-
Display Trails: Color or monochrome, true or relative
-
Navigation Data: 200 waypoints, 30 nav-lines
-
Surveillance Area: Polygon by mouse or coordinates
-
Noise Reduction: Rain, wave, and clutter suppression
-
Self-Test: Fully automatic
-
Menu Languages: English / Chinese
-
Manual Input: Position and heading
-
PM Support: Optional, antenna PM-ready
Frequently Asked Technical Questions
What display sizes and scanner powers are available for the Yonzoe YAR27 radar?
It offers 19-inch and 27-inch high-resolution color LCD consoles paired with 12kW or 25kW X-band transceiver turning pedestals.
Manufacturer documentation and compatibility
Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
