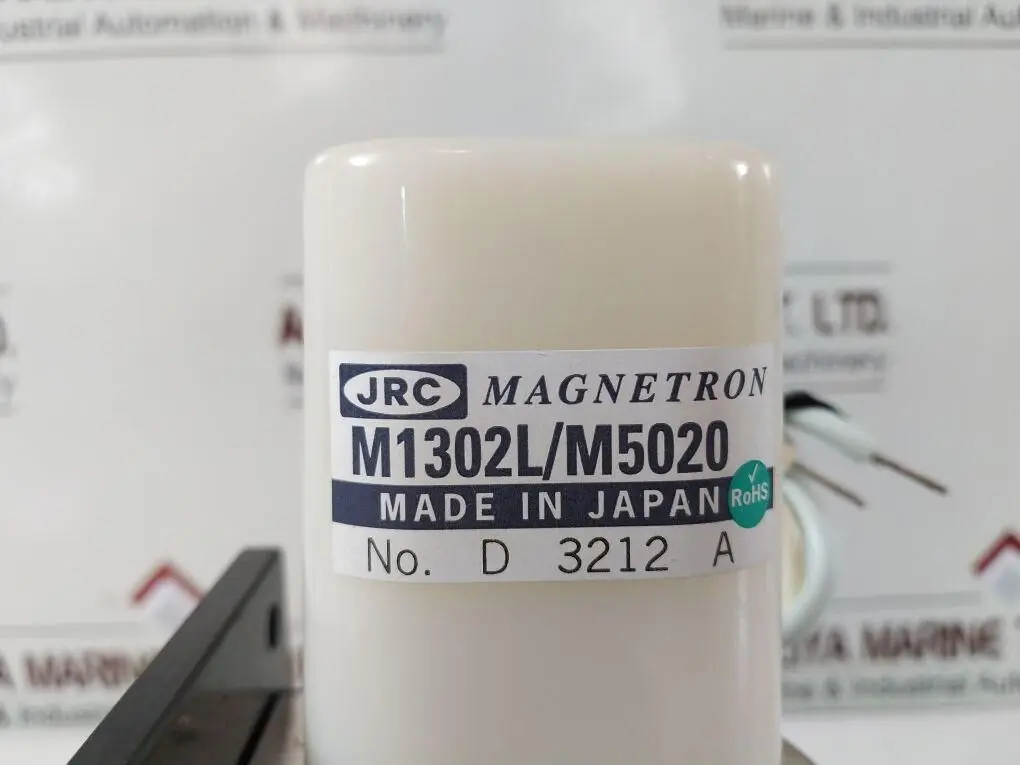

The M1302L/M5020 S-band Magnetron is specifically designed for use in S-band radar systems. With a fixed frequency range of 3040 – 3060 MHz, this magnetron provides accurate and consistent signal transmission, making it ideal for radar applications that require high performance and precision. The magnetron delivers a peak output power of 30 kW, ensuring strong and reliable radar signals even in the most demanding environments.
Weighing just 2.5 kg, the M1302L/M5020 Magnetron is lightweight and easy to integrate into various radar system configurations. Its design includes a waveguide RF output interface (WR284) and a lead wire power supply interface, simplifying installation and system compatibility. The unit is equipped with a 6.3 V heater voltage during preheating, and it features a 1 μs pulse duration, which allows for high-speed, efficient signal transmission.
The M1302L/M5020 operates with a 0.001 duty cycle and supports cooling via air or forced air, enhancing its durability and efficiency. It is built to withstand harsh operational conditions, making it a reliable choice for critical radar applications.
With strict quality control processes, the M1302L/M5020 is guaranteed to perform consistently over its lifetime, providing long-term reliability and operational efficiency.
Technical Specifications:
- Frequency: 3040 to 3060 MHz (Fixed)
- Peak Output Power: 30 kW
- Duty Cycle / Pulse Duration: 0.001 / 1 μs
- Peak Anode Voltage: 8 kV
- Peak Anode Current: 12 A
- Heater Voltage: 6.3 V (Preheat)
- Heater Current: 1.4 A
- RF Output Interface: Waveguide WR284
- Power Supply Interface: Lead wire
- Cooling: Air / Forced air
- Weight: 2.5 kg
