Description

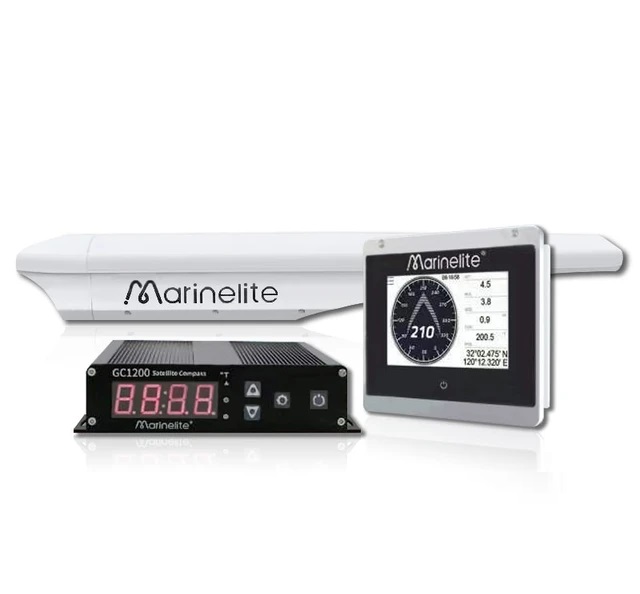

The Marinelite SC90 / SC901 Satellite Compass is a next-generation high-precision heading system designed for marine vessels requiring reliable GPS-based navigation in all sea conditions. Equipped with carrier phase decoding technology, the system provides extremely accurate orientation, even during rapid vessel turns, pitch, or roll.
Using a dual-star navigation system (GPS + Beidou), the SC90 delivers faster directional speed, stable heading data, and superior signal tracking. With a built-in gyro compensation system, the compass achieves heading updates up to 50 times per second, with turn-rate performance reaching 90°/s – meeting advanced requirements for high-speed vessels.
The SC90 supports multi-channel NMEA0183 data output for full connectivity with radar, ARPA, ECDIS, AIS, chart plotters, autopilots, sonar, and all major marine navigation systems. Its industrial-grade design ensures durability, while the optional 5-inch full-touch display provides intuitive data visibility and multiple display modes.
Certified by China Classification Society (CCS), the Marinelite SC90/901 is maintenance-free, with no moving parts and no recurring service cost.
📌 Key Features
-
Pre-type carrier phase decoding technology for highly precise orientation
-
Dual-star GPS + Beidou positioning system for faster directional speed
-
Advanced speed and course filtering for stable navigation data
-
Built-in gyro compensation system for superior heading performance
-
Fast start-up, quick signal recapture, and heading updates up to 50 Hz
-
High-speed turn-rate tracking up to 90°/s
-
Multi-channel NMEA0183 output for radar, ARPA, ECDIS, AIS, autopilot & sonar
-
Industrial-grade design with easy installation
-
Optional full-touch 5″ display with multiple viewing modes
-
Maintenance-free – no mechanical moving parts
-
Certified Marine Product – CCS Approved
📌 Technical Specifications
General
| Parameter | Specification |
|---|---|
| Frequency | B1, L1, G1 |
| Baseline Length | 60 cm |
| Heading Accuracy | 0.4° RMS |
| Attitude Accuracy | Pitch/Roll: 0.4° RMS |
| Position Accuracy | 2.5 m |
| Cold Start | ≤ 32s |
| Hot Start | ≤ 1s |
| Signal Recapture | ≤ 1s |
| First Positioning Time | < 2 min |
| Speed Measurement Accuracy | 0.1 m/s (GPS + BDS) |
Interfaces
| Port Type | Details |
|---|---|
| NMEA0183 | x6 ports |
| GNSS Output | x2 (9600 bps fixed) |
| HDT Output | x2 (default 38400 bps, adjustable) |
| HDT + GNSS | x2 (default 4800 bps, adjustable) |
| AD-10 | x1 |
| CAN | x1 (preset) |
Data Sentences
RMC, VTG, GGA, GSA, GSV, GLL, ZDA, HDT, ROT, THS
Display Unit (Optional)
| Specification | Detail |
|---|---|
| Screen | 5″ TFT |
| Resolution | 854 × 480 |
| Modes | Compass + Data, Heading Mode, Positioning Mode, ROT Mode |
Power & Environment
| Parameter | Value |
|---|---|
| Power Supply | 11–35V DC |
| Operating Temperature | –30°C to +70°C |
| Protection Rating | Antenna IP56 / Junction Box IP20 |
| Vibration Standard | IEC60945 |
Dimensions (SC901 Antenna)
-
Diameter: 750 mm (29.5″)
-
Height: 153 mm (6.0″)
-
Base Width: 170 mm (6.7″)
-
Junction Box: 217 mm × 145 mm
Equipment List
-
SC901 Antenna unit ×1
-
SC900 Junction box ×1
-
SC902 Display (Optional) ×1
-
GNSS antenna data cable ×1
-
2-pin power cable ×1
-
6-pin data cable (Optional) ×1
-
8-pin data cable ×1
-
Mounting bracket ×1
-
Installation manual ×1
