Ninglu NMEA9108 EMC Approved for Rail Installation

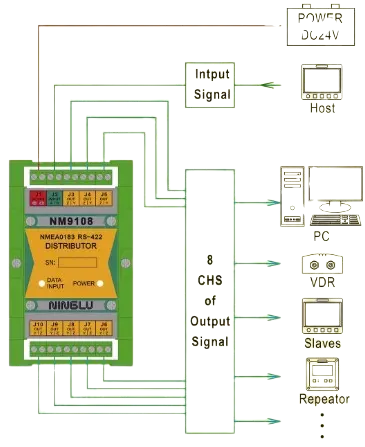

Ninglu NM9108 NMEA0183 Signal Distributor, a highly convenient and practical tool designed for seamless distribution of NMEA0183 signals. With its simple and compact design, the NM9108 offers effortless installation and efficient signal management.

Crafted to meet the demands of modern installations, the NM9108 is installed in the standardized UM module produced by Phoenix Contact, ensuring compatibility with industry-standard DIN rails. This standardized mounting solution simplifies installation processes, making it easier than ever to integrate the NM9108 into your system. Additionally, the inclusion of pluggable screw terminals further streamlines wiring, enhancing overall installation efficiency.

The NM9108 boasts compatibility with all NMEA0183 versions, providing flexibility and versatility for a wide range of applications. Whether you’re working with legacy systems or modern equipment, the NM9108 delivers reliable signal distribution without compromise.

Key Features:

• Simple and compact design
• Easy installation on DIN TS35 rail
• Compatible with all NMEA0183 versions
• Pluggable screw terminals for quick and easy installation
• LED indication of input signals and power supply

Technical Specification:

• Power supply: 24VDC (18 to 33VDC)
• Number of inputs: 1
• Number of outputs: 8
• Input/Output signal speed: up to 115200 bps
• Dimension: 128mm (L) x 77mm (W) x 50mm (H)
• Mounting: DIN TS35/TH35 rail
• Galvanic isolation: power supply 1, 5Kvdc
• Short circuit output protection
