Description
Technical Specifications & Operational Parameters
| Specification | Parameter |
|---|---|
| Operating Voltage | 12V DC / 24V DC (powered via autopilot controller) |
| Sensor Type | Precision heavy-duty sealed wire-wound potentiometer (1 kΩ) |
| Mechanical Angle Range | Up to ±60° mechanical movement (standard ±45° operational) |
| Ingress Protection | IP67 weatherproof sealed casing for steering flat environments |
| Mounting & Linkage | Heavy-duty stainless steel ball-joint linkage rod with adjustable arm |
| System Compatibility | ONWA KAP-866 and KAP-866A Autopilot systems; compatible with standard commercial rudder angle indicator meters |
| Operating Temperature | -20°C to +55°C |

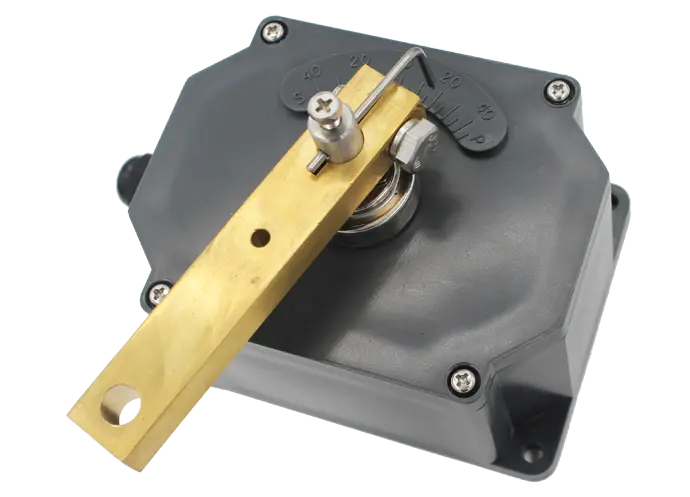

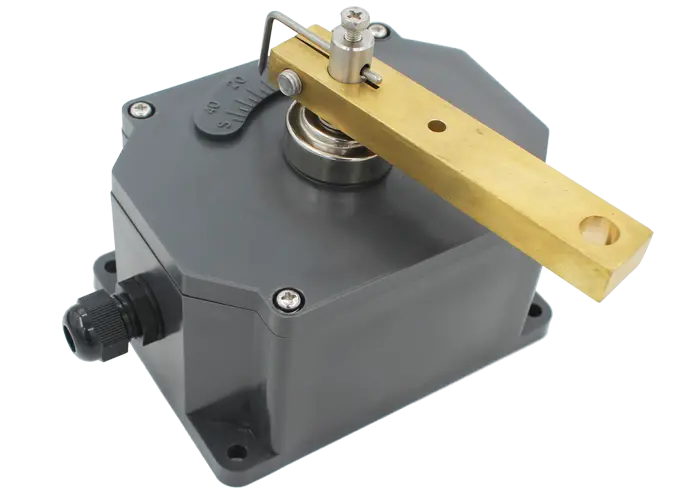

The KRF-35 Rudder Feedback Unit provides accurate and responsive rudder position feedback to the autopilot processing computer. Built with heavy-duty corrosion-resistant marine alloys, it ensures reliable long-term steering control under heavy vibration and demanding commercial vessel duty cycles.
Manufacturer documentation and compatibility
Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
