Description
MKR056 — product overview
A steering repeater compass with local heading indication, RUN/FAIL status, alignment control and a dimmer. SEANAV’s price entry specifies the 192 mm version with a 3 m cable.
SEANAV MARINE selling price: Contact Sales, excluding tax. Availability and delivery time are confirmed with your quotation.
Key features and application
- Steering-position heading indication
- Local illumination and alignment controls
- Different F, W, P and S enclosures have different dimensions and masses
Technical specifications
| Listed face format | 192 × 192 mm |
|---|---|
| Listed cable | 3 m |
| 192 mm flush reference | MKR056-F1 |
| MKR056-F1 catalogue mass | 3.2 kg |
| Reference panel cutout | 182 × 182 mm |
| Reference fixing centres | 177 ±0.5 mm |
| Supply terminals | 24 V DC and GND shown in drawing |
| Signal terminals | SDA / SDB; match system format and baud rate |
Model and variant note: The 3.2 kg mass and cutout refer specifically to F1. They must not be assigned to the wall or pedestal version.
Supply scope and installation
192 mm steering repeater with listed 3 m cable; confirm the complete mounting and connection suffix.

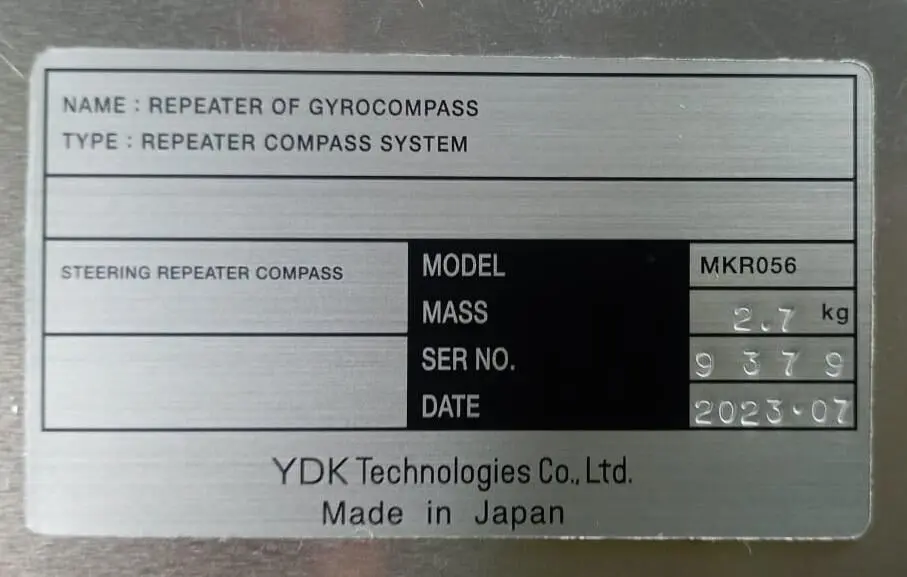

Provide the complete model suffix, equipment nameplate and relevant mounting or wiring drawing so SEANAV MARINE can match the supplied item to the vessel. Manufacturer drawings and nameplate ratings govern installation. Measurements tied to a specific variant are identified above.
Product questions
What is MKR056 used for?
A steering repeater compass with local heading indication, RUN/FAIL status, alignment control and a dimmer. SEANAV’s price entry specifies the 192 mm version with a 3 m cable.
What is included in this price?
192 mm steering repeater with listed 3 m cable; confirm the complete mounting and connection suffix. The listed Contact Sales is taken from SEANAV’s April 2026 accessory price list. Confirm current validity, freight and any additional installation items.
How do I order the correct version?
Send the complete MKR056 order reference, quantity, vessel name, existing equipment photographs and delivery port to SEANAV MARINE. Include the fitted equipment’s electrical ratings and required completion date where applicable.
Manufacturer documents
Specifications above identify their relevant model or drawing variant. Legacy manufacturer references are provided for technical identification; confirm the current delivered configuration before purchase.
Compare YDK Technologies accessories · Gyrocompass service enquiries
Manufacturer documentation and compatibility
Select the exact model, hardware generation and document revision. Before ordering, confirm the equipment interfaces, power requirements, required approvals and included accessories against the applicable manufacturer documentation. Send nameplate photographs, the installed equipment details, vessel name, port and ETA with your enquiry.
