MDR290-DF — product overview
A dual-channel paperless course recorder for heading and rudder-angle history, supplied in the listed flush mounting configuration.
SEANAV MARINE selling price: AED 24,748, excluding tax. Availability and delivery time are confirmed with your quotation.
Key features and application
- Stores course history without chart paper or recording pens

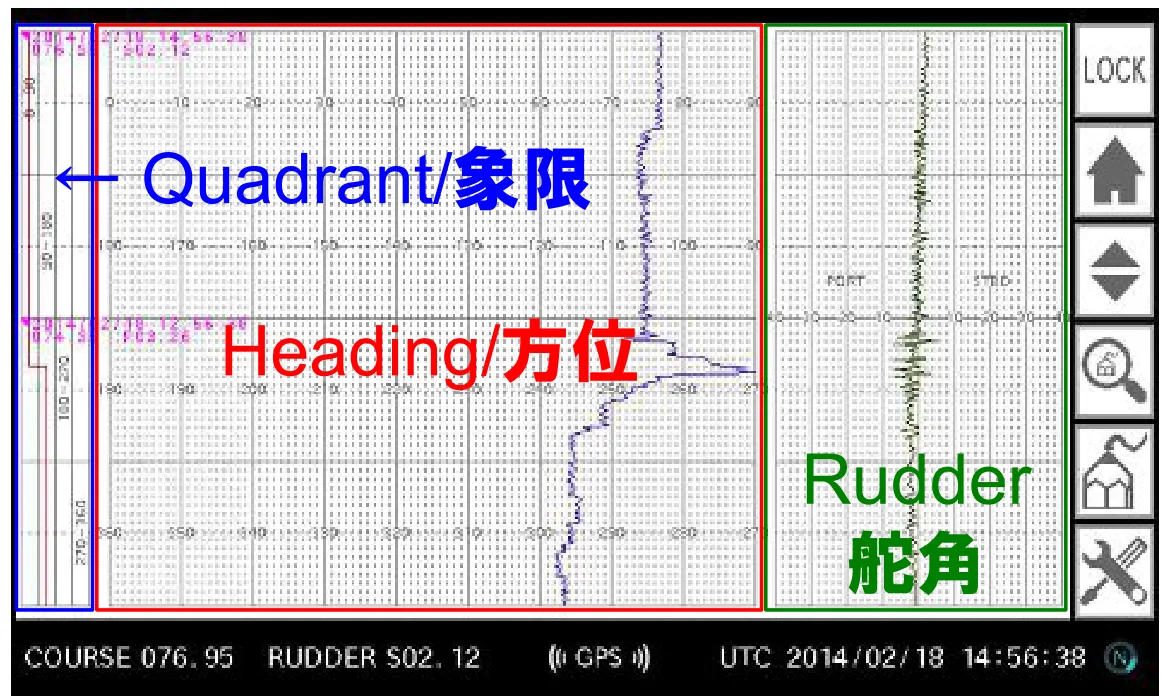

- Displays recorded history on the LCD
- Supports notes using the touch pen
- Optional GPS supplies time/position information
Technical specifications
| Recorder configuration | Dual channel |
|---|---|
| Mounting | Flush |
| Display | 7-inch LCD with touch-pen operation |
| Storage | SD memory card |
| Heading input | IEC 61162-1/-2; HRC, HDT or THS; 4,800 or 38,400 bps |
| Power | 100–240 V AC, 50/60 Hz; 24 V DC option |
| Optional GPS input | IEC 61162-1; ZDA or ZDA/GGA; 4,800 bps |
| Rudder input | IEC 61162-1; RSA; 4,800 bps |
Model and variant note: The brochure’s 3.0 kg outline is for its illustrated newbuilding version, so that weight is not applied to every flush/wall or retrofit variant.
Supply scope and installation
Recorder in the listed channel/mounting configuration; confirm power option, SD card, touch pen, mounting kit and input wiring.
Provide the complete model suffix, equipment nameplate and relevant mounting or wiring drawing so SEANAV MARINE can match the supplied item to the vessel. Manufacturer drawings and nameplate ratings govern installation. Measurements tied to a specific variant are identified above.
Product questions
What is MDR290-DF used for?
A dual-channel paperless course recorder for heading and rudder-angle history, supplied in the listed flush mounting configuration.
What is included in this price?
Recorder in the listed channel/mounting configuration; confirm power option, SD card, touch pen, mounting kit and input wiring. The listed AED 24,748 is taken from SEANAV’s April 2026 accessory price list. Confirm current validity, freight and any additional installation items.
How do I order the correct version?
Send the complete MDR290-DF order reference, quantity, vessel name, existing equipment photographs and delivery port to SEANAV MARINE. Include the fitted equipment’s electrical ratings and required completion date where applicable.

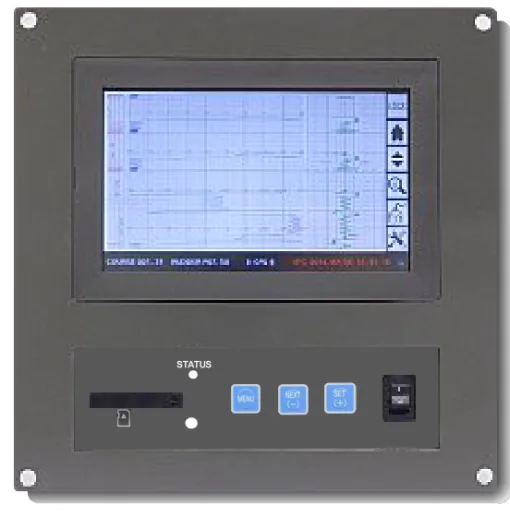

Manufacturer images and drawings
Manufacturer documents
Specifications above identify their relevant model or drawing variant. Legacy manufacturer references are provided for technical identification; confirm the current delivered configuration before purchase.
