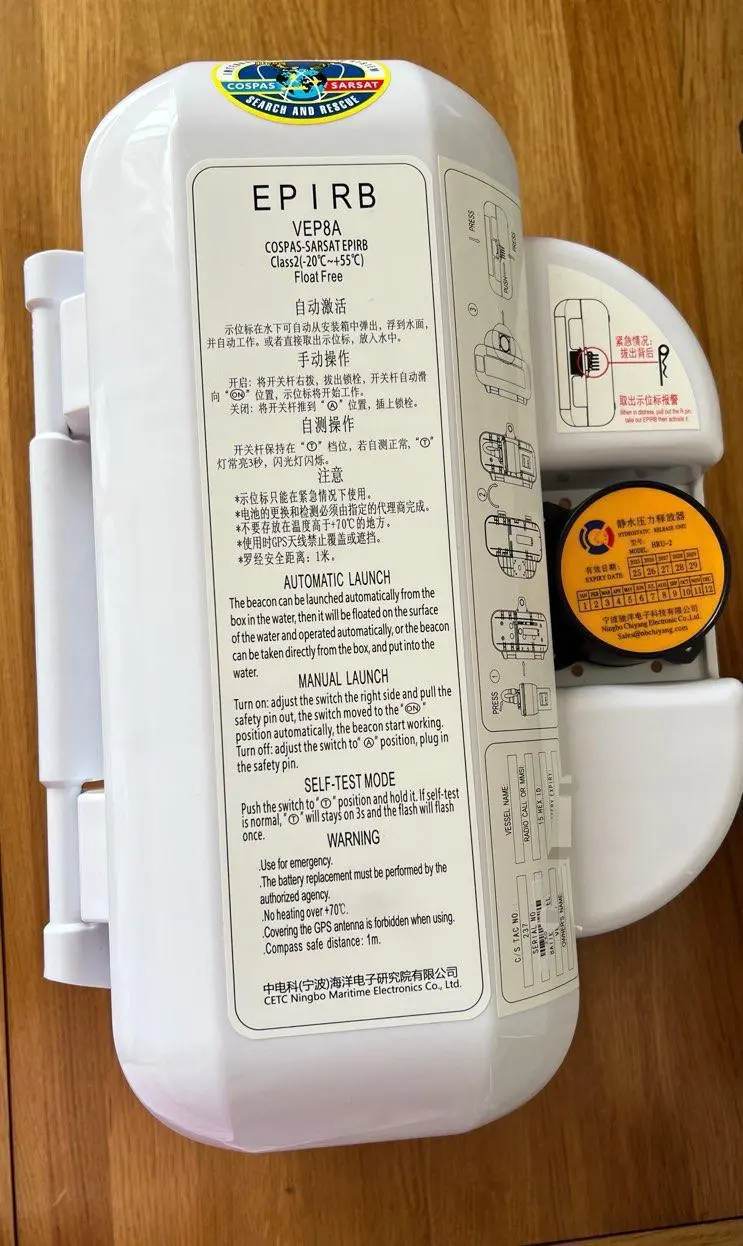

CETC AIS EPIRB VEP8A – Emergency Position Indicator Radio Beacon
The CETC AIS EPIRB VEP8A Emergency Position Indicator Radio Beacon is a must-have safety device for anyone who spends time on the water. It is easy to use and can be deployed in seconds. Once deployed, the EPIRB will transmit a distress signal that can be detected by search and rescue vessels up to 400 miles away.
The CETC AIS EPIRB VEP8A also features a built-in AIS transceiver. This allows it to be tracked by search and rescue vessels equipped with AIS receivers. This is a valuable feature, especially in remote areas where traditional search and rescue methods may not be effective.
The CETC AIS EPIRB VEP8A is powered by a long-life lithium battery that will last for up to 48 hours on a single activation. It is also waterproof to a depth of 10 meters.
Features:
- Compact and lightweight design
- Built-in AIS transceiver for tracking by search and rescue vessels
- Easy to use and deploy
- Long-life lithium battery
- Waterproof to a depth of 10 meters
Benefits:
- Increased safety for boaters, fishermen, and other marine enthusiasts
- Peace of mind knowing that you can be tracked and rescued in the event of an emergency
- Reduced risk of serious injury or death in the event of a maritime accident
Technical Specification:
General |
|
| Model: | VEP8A |
| Case Material: | Special ABS+PC |
| Color: | High Visibility Orange |
| IP Grade: | IP67 |
| Buoyant: | Yes |
| Deployment: | Automatic hydrostatic release or Manual switch control |
| Accessories: | Hydrostatic Release Unit
Buoyant lanyard Lanyard for hand-free carry |
Physical |
|
| Weight: | 1.45 kg (Beacon), 1.6 kg (Container) |
| Size: | 116 (W)×710 (H)×100 (D) mm (Beacon), 220(W)×415(H)×144(D) mm (Container) |
| 406 MHz Transmitter | |
| Frequency: | 406.031MHz |
| Output Power: | 5W |
| AIS Transmitter | |
| Frequency: | AIS1 (161.975 MHz), AIS2 (162.025 MHz) |
| Output Power: | 1 W |
| 121.5 MHz Homer | |
| Frequency: | 121.5MHz |
| Output Power: | 50mW |
| GNSS Receiver | |
| Type: | Built-in GNSS antenna |
| System Supported: | GPS, BDS, Glonass, Galileo |
| Satellites Tracked: | 72 |
| Battery | |
| Type: | |
| Total Voltage Rating: | 14.4 V (4ea x 3.6V each) |
| Storage: | Up to 9 years (see Note) |
| Operating: | ≥48hrs. (-20℃) |
| Hydrostatic Release Unit | |
| Type | |
| Storage: | Up to 3 years (max 2 years onboard) |
| Environment | |
| Operating Temperature: | -20℃ ～ +55℃ |
| Storage Temperature: | -30℃ ～ +70℃ |
| Automatic Release Depth: | 4 meters max (13 feet) |
