Overview: This listing identifies Highlander HLD-RADAR 300 for marine service, maintenance, repair and spare-part enquiries. Confirm the exact model and system before compatibility or work scope is quoted.
System Overview & Engineering Architecture

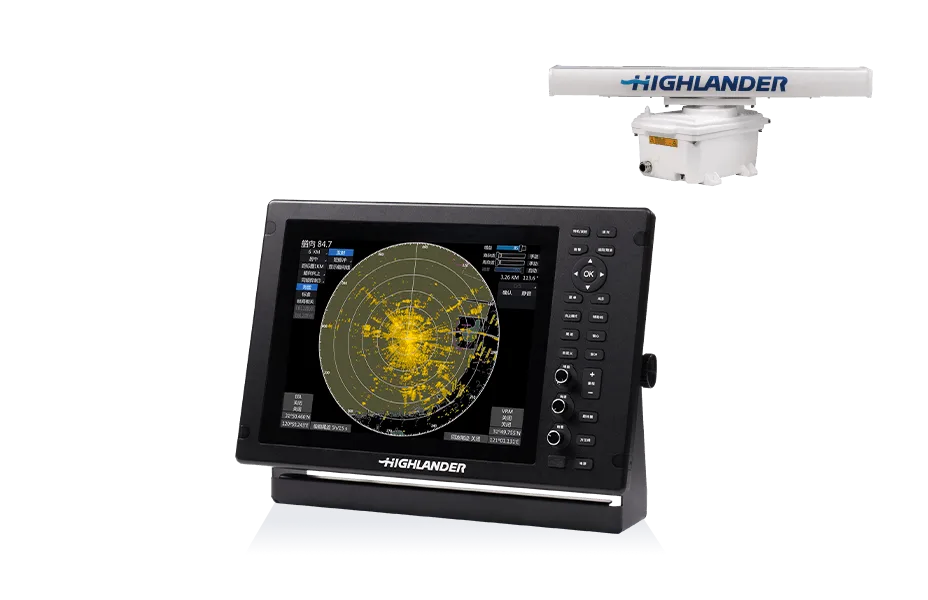

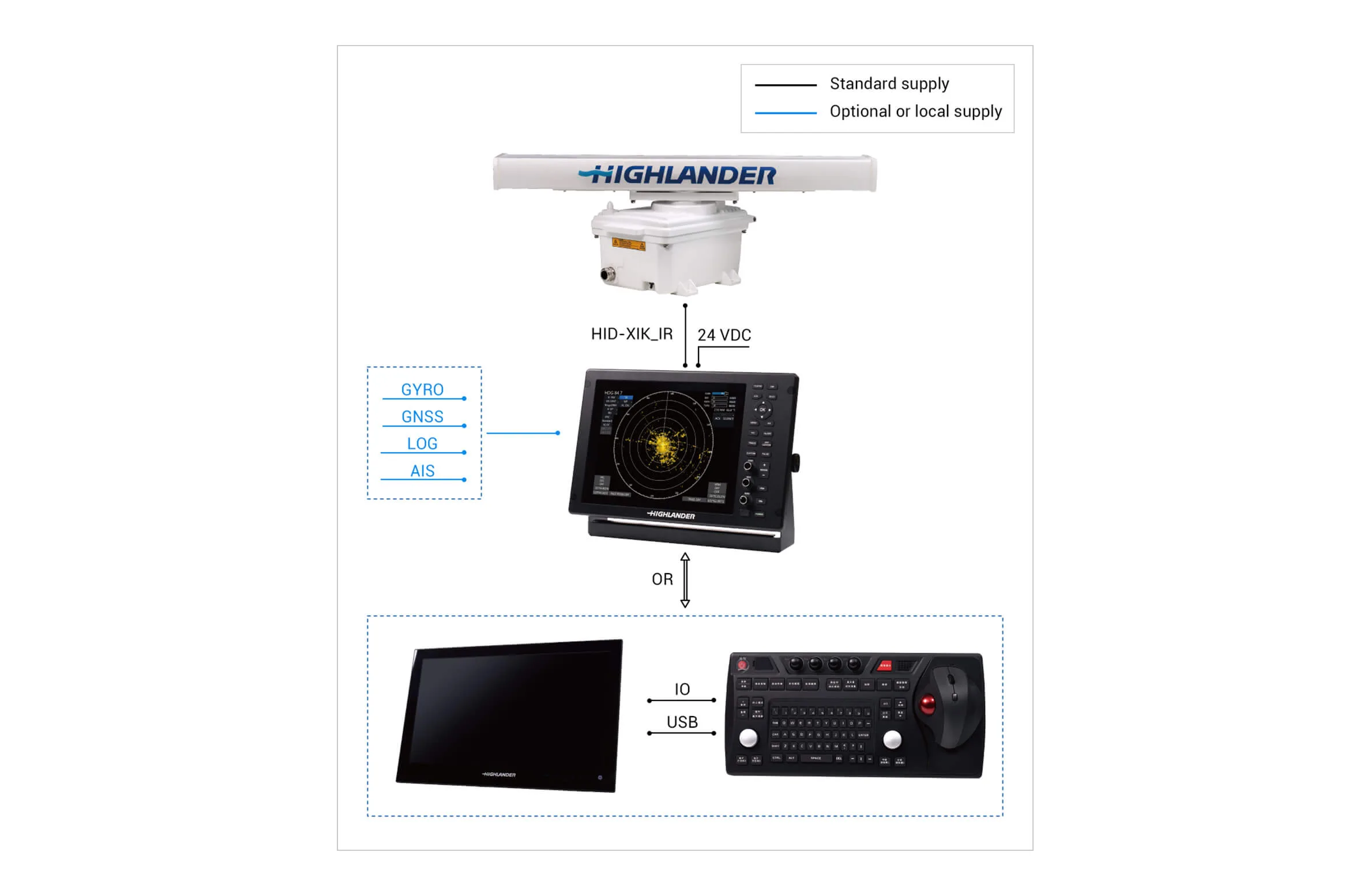

The Highlander HLD-RADAR 300 is a fully automatic working radar system engineered for maritime collision avoidance and surface surveillance. Designed with a modular architecture, the system integrates an antenna assembly, transceiver unit, and an onboard all-in-one processing unit to deliver reliable radar performance in demanding marine environments.
The radar operates with automatic target acquisition and tracking, reducing operator workload while maintaining high situational awareness. Its engineering design supports both standalone operation and integration with broader bridge systems, making it suitable for a range of vessel types including commercial ships, offshore support vessels, and specialized maritime platforms.
Core Features & Operational Advantages
- DIM Auto-Dimming + Co-frequency Rejection: Enhances display clarity under varying lighting conditions and suppresses interference from co-channel signals.
- Target Tracking (Manual/Automatic): Supports both manual target selection and automatic target capture with continuous tracking capabilities.
- IP Camera Access + Integrated Navigation Display: Enables overlay of radar data with visual camera feeds and navigation information for enhanced situational awareness.
- Distance & Bearing Measurement: Distance is measured using a fixed pitch ring or VRM (variable pitch collar), while bearing is determined via EBL (Electronic Azimuth Line).
- True Motion / Relative Motion Modes: Offers flexible display modes to suit different operational requirements and vessel maneuvering scenarios.
- Vector and Trail Display: Provides intuitive target movement visualization through vector lines and historical trail markers.
- Easy Installation & Automatic Target Acquisition: Simplifies deployment with automatic initialization and target detection protocols.
- Highlander HLD-RADAR 900-S S-band RADAR
- Highlander HLD-RADAR 900-X X-band RADAR
- Highlander HLD-RAIS 100 Rudder Angle Indication System
- Electronic Chart Display and Information System HLD-ECDIS 600
- Highlander Solid State RADAR HLD-RADAR 900S
- VDR / S-VDR Annual Performance Test & Class Certification
- Marine Radar Systems & Equipment UAE
- Marine Maintenance, Service & Repair Departments
- Marine Spare Parts & Technical Supply

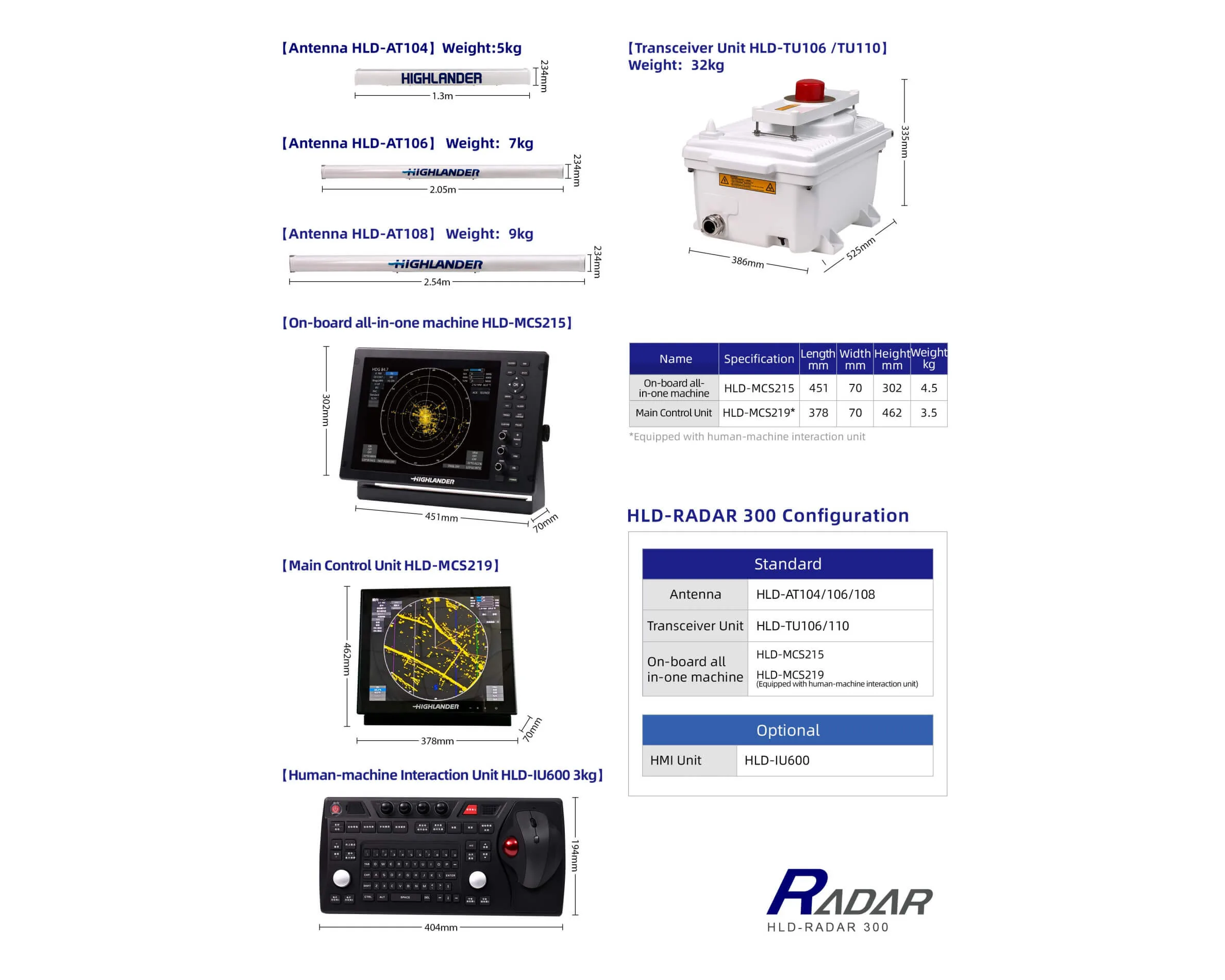

Component Breakdown & Technical Specifications
The HLD-RADAR 300 system comprises the following core components:
| Component | Model |
|---|---|
| Antenna | HLD-AT104 / HLD-AT106 / HLD-AT108 |
| Transceiver Unit | HLD-TU106 / HLD-TU110 |
| On-board All-in-One Machine | HLD-MCS215 / HLD-MCS219 (with HMI Unit) |
Optional Configuration:
| Component | Model |
|---|---|
| HMI Unit | HLD-IU600 |
SOLAS, IMO, IEC & Classification Society Compliance
The Highlander HLD-RADAR 300 is designed to meet international maritime safety standards. As part of the bridge navigation suite, it supports compliance with SOLAS Chapter V requirements for collision avoidance equipment. The system aligns with performance standards for maritime radar systems as defined by the International Maritime Organization (IMO) and relevant IEC specifications.
For vessels operating under classification societies such as DNV, ABS, and Lloyd’s Register, the HLD-RADAR 300 provides documented integration capabilities and supports class survey requirements for navigation equipment.
Onboard Maintenance & Inspection Standards
Routine maintenance of the HLD-RADAR 300 includes periodic antenna alignment checks, transceiver performance verification, and display calibration. The modular design allows for component-level servicing, minimizing vessel downtime. Operators should follow OEM-recommended inspection intervals and maintain logs for class survey documentation.
Technical Support & Port Delivery Call to Action
Seanav Marine provides comprehensive technical support for the Highlander HLD-RADAR 300 across major maritime hubs including Jebel Ali Port, Port Rashid, Khalifa Port, Port of Fujairah, and Khor Fakkan. Our team supports installation, commissioning, calibration, and ongoing maintenance services.
For inquiries, technical consultations, or service scheduling, contact our technical team at Contact Seanav Marine Technical Team.
Related Products & Internal Resources
External OEM Reference
Frequently Asked Questions
Frequently Asked Questions
What are the core components of the Highlander HLD-RADAR 300?
The system includes an antenna (HLD-AT104/106/108), transceiver unit (HLD-TU106/110), and an onboard all-in-one machine (HLD-MCS215 or HLD-MCS219 with HMI unit). An optional HLD-IU600 HMI unit can also be configured.
Does the HLD-RADAR 300 support automatic target tracking?
Yes, the radar supports both manual and automatic target tracking, including automatic target capture and continuous tracking functionality.
Can the HLD-RADAR 300 integrate with IP cameras?
Yes, the system supports IP camera access and can overlay radar data with integrated navigation information for enhanced situational awareness.
What motion display modes are available?
The radar supports both True Motion and Relative Motion display modes, along with vector and trail display options.
Is the HLD-RADAR 300 compliant with SOLAS requirements?
The system is designed to support compliance with SOLAS Chapter V requirements for collision avoidance radar equipment.
What classification societies recognize this radar?
The HLD-RADAR 300 is suitable for vessels classed by DNV, ABS, Lloyd’s Register, and other IACS member societies.
Can Seanav Marine provide installation and maintenance services?
Yes, Seanav Marine offers full installation, commissioning, calibration, and maintenance support across UAE ports including Jebel Ali, Port Rashid, and Khalifa Port.
Where can I find spare parts for the HLD-RADAR 300?
Seanav Marine maintains an inventory of genuine and compatible spare parts. Visit Marine Spare Parts & Technical Supply for more information.
Service and spare-part enquiry
Highlander HLD-RADAR 300 can be reviewed for maintenance, fault assessment, repair, overhaul planning or replacement sourcing. Share the model and part labels, serial or revision, fitted system, fault/alarm, service history and vessel/port. Compatibility, availability, scope, access and timing are confirmed before quotation. Seanav Marine is an independent provider; manufacturer authorization or attendance is not implied.
