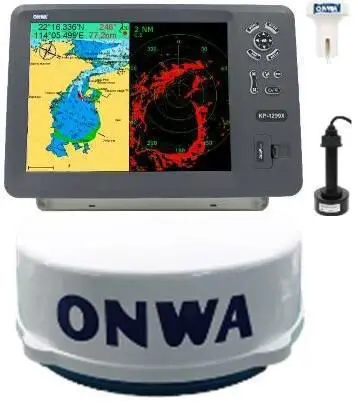

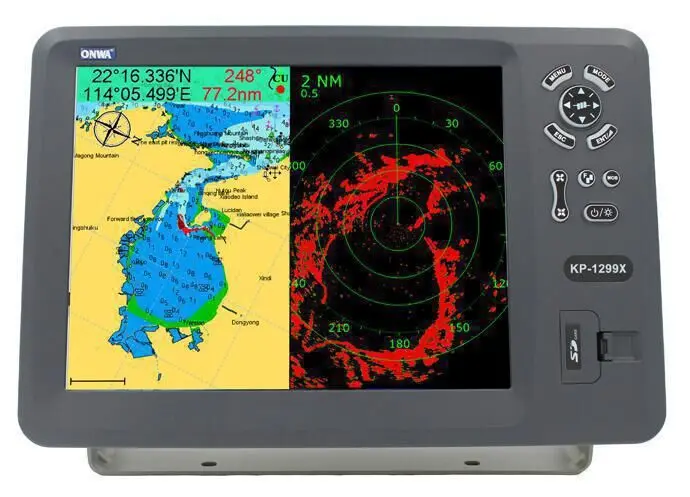

ONWA KP-1299X 12.1 Inch GPS Chartplotter, Fishfinder, RADAR, AIS

Name: ONWA KP-1299X 12.1 Inch GPS Chartplotter, Fishfinder, RADAR, AIS
SKU: 8276
Price: 10900.0 AED
Availability: InStock

12.1-inch 5-in-1 multifunction GPS chartplotter with radar, AIS, and echo sounder

Includes a Class B AIS transponder and fish finder transducer

Available radar options: radome and open array (as requested)

Supports 12,000 waypoints, 30 routes, and automatic track logs

Built-in worldwide tide data, NOAA chart colors, and K-Chart compatibility

The ONWA 12.1-Inch Multifunction GPS Chartplotter offers an all-in-one solution for navigation. This device combines GPS chart plotting, radar, AIS transponder functions, and an echo sounder. Designed for both professionals and hobbyists, it provides essential tools for safe and precise maritime navigation. The large 12.1-inch color TFT LCD ensures clear visuals in all lighting conditions.

With its Class B AIS transponder, the device enables you to both send and receive location data. This feature enhances safety by letting you monitor nearby vessels. The included fish finder transducer adds an extra layer of functionality for fishing enthusiasts, delivering detailed underwater information. Additionally, you can choose between radome and open array radar options to suit your specific needs.

The chartplotter supports up to 12,000 user waypoints and 30 customizable routes with a maximum of 170 points each. It also automatically logs up to 8,000 track points, allowing you to retrace your path with ease. The built-in tide data covers worldwide locations, and it supports multiple map formats, including K-Chart, C-Map Max, and Navionics+.

Built to withstand tough marine environments, the ONWA chartplotter has a rugged design with IPX6-rated waterproofing on both the front panel and the antenna. The device also includes various alarms for proximity, speed, voltage, and anchor drag, adding to your peace of mind. You can switch between day, night, and NOAA chart view modes to optimize visibility at any time of day.

Compact yet durable, this chartplotter is an ideal addition to any vessel, offering advanced navigation in one easy-to-use device.

Compatible Maps

Chartplotter-Map-cf-card — Built-in Fish Finder Feature

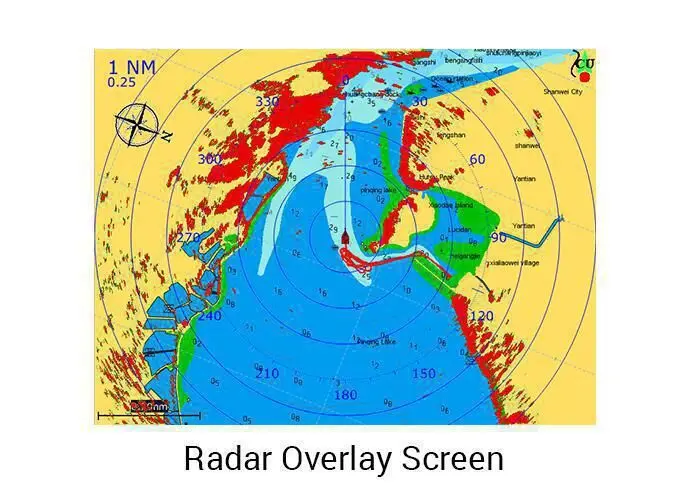

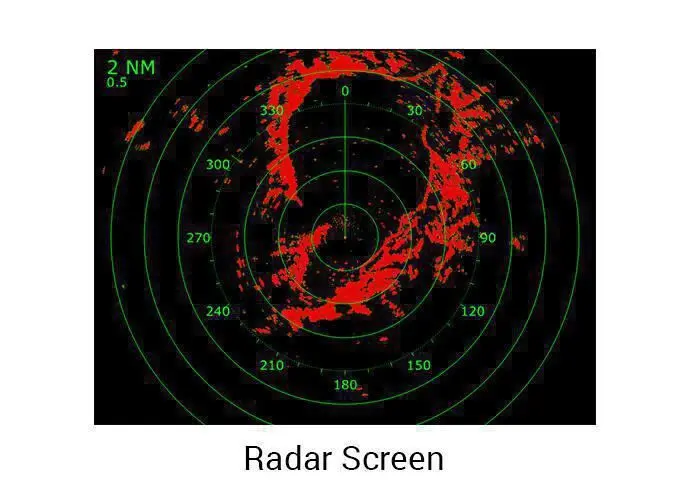

Radar Function

TECHNICAL SPECIFICATION

Waypoints/icons

12,000 user waypoints with name, symbol,
3 system waypoints: MOB,Start,cursor
10 proximity waypoints

Routes

30 routes waypoint up to 170 points each,
plus MOB and Track Navigation or Goto Track modes

Tracks

8,000 points automatic track log;
10 saved tracks (up to 8000 track points each)
lets you retrace your path in both directions

Alarms

XTE, Anchor drag, arrival, speed, voltage, proximity waypoint,
Timer and AIS (CPA and TCPA) alarm

Drawing

1000 Drawing Marks; 2000 Drawing Lines (40 points each);
1000 Drawing Place Name; 8 colors for Drawing

Pallete

Normal
Daylight exposed to sunlight
Night in dark environment
NOAA paperchart colors

Tides

Built-in Worldwide Tide Data

Position Format

Lat/Lon

Basemap

Worldwide

External Map

Compatible with K-Chart 2.0, K-Chart 3.0, C-Map Max and Navionics+

User Data Storage

Internal backup of user settings or external SD-card

Plot Interval

5secs to 60 mins or 0.01 to 10nm

Plotting Scales

0.001 to 700nm

AIS

700 targets display

AIS Target Tracking

1000 Automatically saved tracks (100 points each)
10 Manually saved tracks (300 points each)

Perspective view

On/off (available for C-Map only)

Celestial

Sunrise/Sunset Moonrise/Moonset

GPS Receiver Characteristics

Receiver

50 parallel channel GNSS receiver continuously tracks and
uses up to 50 satellites to compute and update your position

Acquisition time

Cold start: 29 seconds
Hot start: 1 second

Update rate

1 second

Accuracy

Position:3 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A

SBAS

Supported

Satellite System

GPS and Beidou

Dynamics

Altitude: 18,000 m
Velocity: 515 m/s

Datum

WGS 84 & user defined

Antenna

KA-07

GPS Interface

GSP Data

RS232 input/output, NMEA 0183 V3.01 and V4.11

GPS Input Baudrate

Auto Scan (4800, 9600, 19200 and 38400)

GPS Output Baudrate

Selectable among 4800, 9600, 19200 and 38400

AIS Interface

AIS Data

RS232 output VDO, VDM, GGA, GSA, GSV and VTG

AIS Output Baudrate

38,400

AIS Characteristics

Frequency Rate

156.025 MHz~162.025 MHz

Access Scheme

SOTDMA

Channel Bandwidth

25 KHz

Modulation

GMSK

Data Rate

9,600 bps

Number of AIS Transmitter

Number of AIS Receiver

AIS Channel 1

CH 87B (161.975 MHz)

AIS Channel 2

CH 88B (162.025 MHz)

Tx Power Output

>5 Watt (37 dBm ± 1.5 dB)

RX Sensitivity

<-123dBm @ 20% PER

RX Message Format

AIS Class A and B messages

Comply Standard

IEC-62287 IEC 62287-2 Ed. 2.0:2017

Echo Sounder Characteristics

Echo Color

16 colors (including background color) according to echo intensity. The background color is selectable from blue, light blue, white and black

Basic Range

Meters 5/10/20/40/80/150/200/300/600/1000
Feet 15/30/60/120/200/400/600/1000/2000/3000
Fathoms 3/5/10/20/40/80/150/300/600
*The basic ranges can be changed on the system menu.

Range Shift

Up to 1000 meters (3000 feet,600 fathoms)

Zoom Range

Times 2,3,4 and 6 ranges

Bottom Lock Expansion Range

5/10 meters,10/20 feet,2/5 fathoms

Auto Mode

Automatic adjustment of range and gain

Display Mode

High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2 display on each),
Zoom (200K and 50K zoom) and A-scope Display

Zoom Display

Marker Zoom, Bottom Zoom and Bottom-lock Expansion

Display Advance Speed

Lines/TX:Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1, 6/1,8/1 and 10/1

TX Frequency

50 and 200kHz (alternately transmitted)

Power Output

600W(Up to 1kW by using High Power Transducer)

Pulse-length/TX rate

Display End Depth (m)	5	10	20	40	80	150	200	300	600	1000
Pulse-Length 200K(µs)	120	220	320	520	920	1020	1020	1020	1020	1020
Pulse-Length 50K(µs)	170	270	370	570	970	1070	1070	1070	1070	1070
TX Rate(pulse/min)	2000	1333	706	353	171	98	75	53	38	27
TX period(millisecond)	30	45	85	170	350	610	800	1120	1580	2200

Interference Rejecter

Rejects unwanted signals by comparing last and present echoes in strength.

Alarm

Fish and Bottom alarms,
Temperature alarm (sensor required)

RADAR Function

Compatible with full range of ONWA
Radar Antenna
(Supplied as an Option):

Radome:
KRA-1007 (Power: 4 kW)
Open-Array:
KRA-4001 (Power: 6 kW)
KRA-3002 (Power: 12.5 kW)

NMEA Sentence Supported

INPUT

(Auto scan Baudrate)
GGA, GLL, GSA, GSV, RMC, HDG, HDM, HDT
VTG, ZDA, MTW, VWR, VWT, MWD, VPW, VHW
TLL, TTM, VDO, VDM, GNS, MTA
RMA, DBT, DPT, MWV, BWC, XTE, ZDL, WPL, AAM,
APB, BOD, RMB, DSC, MDA, RPM, XDR

OUTPUT

Baudrate: Selectable 4800, 9600, 19200, 38400
GGA, GLL, RMC, GSA, GSV, AAM, APA
APB, BOD, BWC, BWR, DBT, DPT, HDT
MTW, RMB, TLL, VTG, WPL, XTE, ZDA
ZTG, ZDL, MWD, VPW, VWR, VWT

OUTPUT for Autopilot

APA, APB, BOD, XTE

Power Supply

10.5 to 30VDC, current drain 1.5A at 12V

PHYSICAL

Size

267.9mm(H)X363.8mm(W)X106mm(D)

Weight

2.54 kg

Display

12.1-inch Color TFT dayview LCD, 800×600 pixels

Waterproofing

Display unit (Front Panel): IPX6
Antenna unit: IPX6

Temperature range

Display unit: -15℃ to +55℃
Antenna unit: -25℃ to +70℃

Equipment List

Display unit
Quick manual
GPS Antenna (10m)
Mounting Brackets
Standard accessories pack

USB Port

Version

2.0

Support:

Onwa Radar, KM-sonar, KM-router
