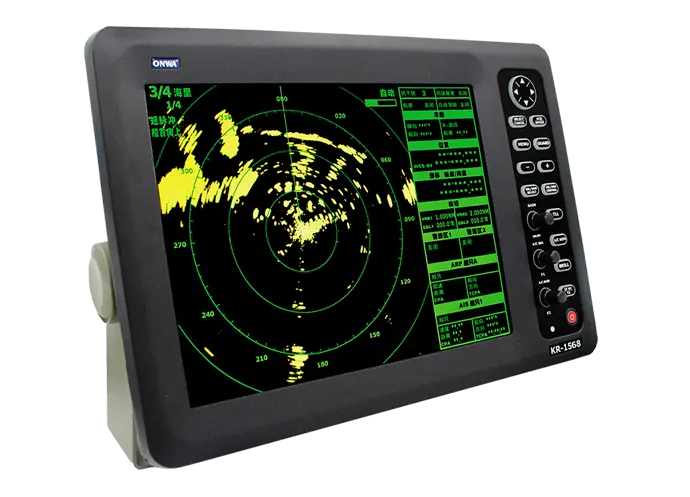

Bright and Clear 15-Inch Display
This radar features a 15-inch color LCD screen with LED backlighting and 32-bit TFT technology. It delivers crystal-clear visuals, ensuring optimal performance even in poor visibility. Whether you’re navigating in fog, darkness, or heavy rain, this display keeps your surroundings in view.
Advanced Target Tracking and AIS
Thanks to ARPA (Automatic Radar Plotting Aid), the system can automatically track up to 20 moving targets, improving your situational awareness. In addition, AIS integration allows you to identify vessels in real time by displaying information such as vessel name, MMSI, speed, and direction. These features help you avoid collisions and make smarter decisions at sea.
Flexible Range and Viewing Modes
The KR-1568 supports a wide range scale from 0.125 to 72 nautical miles, with customizable range intervals and up to 6 range rings. You can choose from multiple display modes—Head-up, Course-up, and North-up—for the view that suits you best.
Powerful Performance in Any Condition

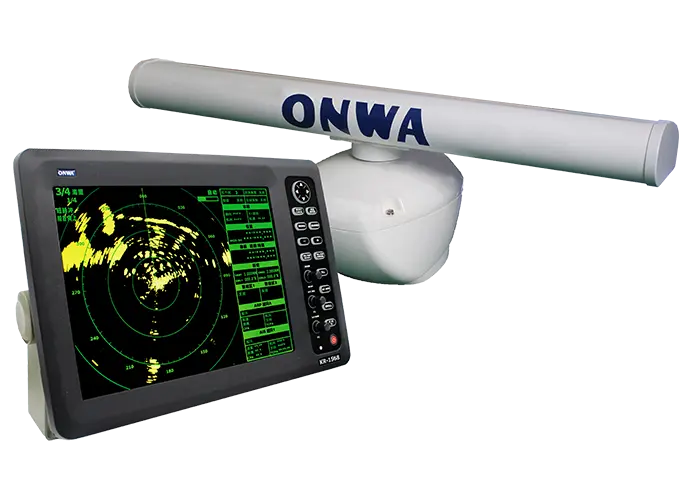

This radar system operates at a peak output power of 6 kW, delivering strong and stable pulses. Its 1.2-meter slotted waveguide array antenna rotates at 24 RPM and is built to resist wind speeds up to 100 knots (51.5 m/s). Plus, the horizontal beam width of 1.9° ensures precise target detection.
Built for Tough Marine Environments
The display unit operates in temperatures between -10°C to +50°C, while the antenna functions smoothly from -25°C to +70°C. It handles 93% humidity at 40°C and is housed in a rugged, waterproof die-cast body.
Smart Features That Make Navigation Easy
-
Echo Trails: View past target movements over time (15 sec to 30 mins or continuous)
-
Target Tracking: Manual acquisition of 30 targets, automatic tracking, and real-time data display
-
Interface Support: Compatible with multiple NMEA 0183 talkers for smooth system integration
-
Custom Settings: Personalize function keys and data fields to match your workflow
Technical Specifications:
Antenna Radiator
| Component | Specification |
|---|---|
| Radiator | Slotted waveguide array |
| Radiator Length | 120 cm |
| Antenna Rotation | 24 RPM |
| Wind Resistance | 100 knots (51.5 m/s) relative wind speed |
| Beam Width | Horizontal: 1.9°, Vertical: 22° |
| Sidelobe Suppression | ±20° off mainlobe: < -24 dB, >±20°: < -30 dB |
| Polarization | Horizontal |
Transceiver Module (In Antenna)
| Component | Specification |
|---|---|
| Transmitting Tube | MAF1422 or MSF1422 |
| Frequency | 9410 ± 30 MHz (X-band) |
| Pulse Length & PPR | Various (see below for range-specific details) |
| Warm-Up Time | 1:30 minutes |
| Peak Output Power | 6 kW nominal |
| Modulator | FET Switching Method |
| IF Frequency | 60 MHz |
| Tuning | Automatic or Manual |
| Receiver Front End | MIC (Microwave IC) |
| Bandwidth | 25 MHz (0.3 & 0.08 µs), 3 MHz (0.8 µs) |
| Duplexer | Circulator with Diode Limiter |
Display Unit
| Component | Specification |
|---|---|
| Type | 15-inch LED-backlit 32-bit TFT Color LCD |
| Display Modes | Head-up, Course-up*, North-up*, True Motion** |
| Range Scale | 0.125 to 72 nm (17 scales) |
| Range Intervals | From 0.0625 to 16 nm |
| Number of Rings | 2 to 6 rings depending on range |
| Bearing Resolution | 4° |
| Bearing Accuracy | Within 1° |
| Range Discrimination | Better than 30 m |
| Range Ring Accuracy | 0.9% of range or 8 m (whichever is larger) |
| Minimum Range | Better than 25 m |
| Echo Trail | 15s, 30s, 1m, 3m, 6m, 15m, 30m, or Continuous |
| Vibration Tolerance | 1–12.5 Hz: ±1.6 mm; 12.5–25 Hz: ±0.38 mm; 25–30 Hz: ±0.1 mm |
Environmental
| Component | Specification |
|---|---|
| Operating Temp. | Display: -10°C to +50°C; Antenna: -25°C to +70°C |
| Humidity | ≤ 93% RH at 40°C |
| Power Supply | 12V/24V/32V DC (10.5V–40V); 60W (30W in Eco mode) |
Tracking & AIS Features
| Feature | Specification |
|---|---|
| Target Tracking | 30 manual acquisitions, Auto tracking |
| Displayed Data | Speed, Course, Range/Bearing, CPA/TCPA |
| AIS Display | Name, MMSI, Call sign, Range/Bearing, L/L, Speed/Course, ROT, CPA/TCPA (requires AIS input) |
Interface & Compatibility
| Component | Specification |
|---|---|
| NMEA Inputs | $APB, $BWC, $BWR, $DBK, $DBS, $DBT, $DPT, $GGA, $GLC, $GLL, $GTD, $HDG, $HDW, $HDT, $MDA, $MTW, $RMA, $RMB, $RMC, $VTG, $VHW, $XTE |
Equipment list:
| Item | Description |
|---|---|
| Display Unit | 1 unit |
| Open-Array Antenna | 1.2 m scanner |
| Antenna Cable | 10/15/20/30 m (choose when ordering) |
| Power Cable | 3 m |
| Operation Manual | Included |
| Spare Parts & Installation | 1 set (standard materials included) |
